1. Purpose

<p class="MsoNormal">The RT9116 is a Audio Amplifier the input voltage range from 8V to 17V. This document explains the function and use of the RT9116 evaluation board (EVB), and provides information to enable operation, modification of the evaluation board and circuit to suit individual requirements.</p>

2. Introduction

<h3>General Product Information</h3> <p class="MsoNormal">The RT9116 is a 10W per channel, high efficiency Class D stereo audio amplifier for driving bridge tied load (BTL) speakers. The RT9116 can drive stereo speakers with load as low as 4Ω. Its high efficiency eliminates the need for an extra heat sink when playing music. The gain of the amplifier can be controlled by gain select pins. The outputs are fully protected against shorts to GND, PVCC, and output to output with an auto recovery feature and monitored output.</p>

3. Product Feature

<ul> <li>8V to 17V Input Supply Range<br /> ► 10W / CH for an 8Ω Load, 13V Supply at 10% THD +N<br /> ► 15W / CH for an 8Ω Load, 16V Supply at 10% THD +N<br /> ► 90% Efficiency Eliminates Need for Heat Sinks </li> <li>Two Selectable Gain Settings</li> <li>Over-Temperature Protection (OTP) with Auto Recovery Option</li> </ul>

4. Key Performance Summary Table

<div> <table width="680" class="MsoTableLightListAccent2" style="border: currentColor; width: 18cm; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 17pt;"> <td valign="top" style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 43.64%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Key Features</p> </td> <td valign="top" style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 56.36%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Evaluation Board Number : PCB086_V1</p> </td> </tr> <tr style="height: 17pt;"> <td valign="top" style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 43.64%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">PVCC Input Voltage</p> </td> <td valign="top" style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 56.36%; height: 17pt;"> <p class="ListParagraph1CxSpLast">12V</p> </td> </tr> <tr style="height: 17pt;"> <td valign="top" style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 43.64%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Speaker Output Power (Load = 8Ω, THD+N = 10%)</p> </td> <td valign="top" style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 56.36%; height: 17pt;"> <p class="ListParagraph1CxSpLast">9W</p> </td> </tr> <tr style="height: 17pt;"> <td valign="top" style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 43.64%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Marking & Package Type</p> </td> <td valign="top" style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 56.36%; height: 17pt;"> <p class="ListParagraph1CxSpLast">RT9116GQW, WQFN-28L 4x5</p> </td> </tr> </tbody> </table> </div>

5. Bench Test Setup Conditions

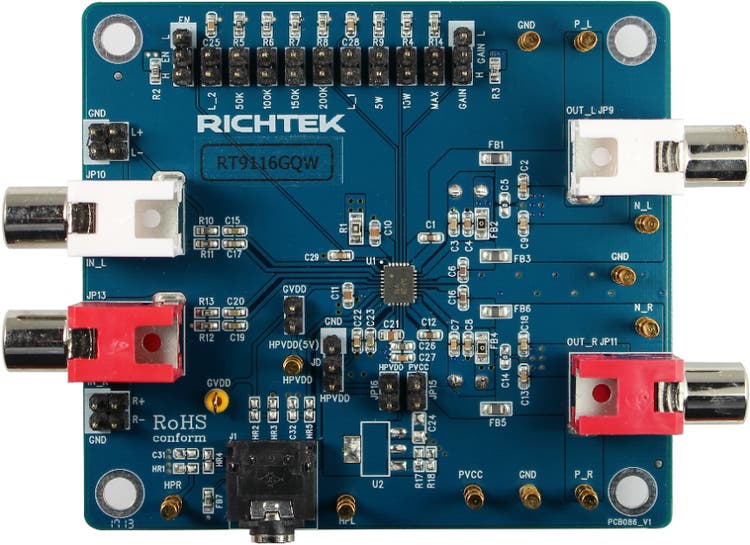

<h3>Headers Description and Placement </h3> <p class="MsoNormal"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9116gqw/html-images/image001_en.png" class="fancybox"><img width="374" height="272" width="374" height="272" id="圖片 8" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9116gqw/html-images/image001_en.png" /></a></p> <p class="2">Carefully inspect all the components used in the EVB according to the following Bill of Materials table, and then make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a>.</p>

6. Test Points

<p class="MsoNormal">The EVB is provided with the test points and pin names listed in the table below.</p> <table width="680" class="MsoTableLightListAccent2" style="border: currentColor; width: 510.2pt; margin-left: 5.4pt; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 1cm;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 13.9%; height: 1cm;"> <p class="23CxSpFirst">Test point/</p> <p class="23CxSpMiddle">Pin name</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.22%; height: 1cm;"> <p class="23CxSpMiddle">Signal</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.88%; height: 1cm;"> <p class="23CxSpLast">Comment (expected waveforms or voltage levels on test points)</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">PVCC</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.22%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Input power supply</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.88%; height: 17pt;"> <p class="MsoNormal">Power input. Support 8V to 17V input voltage.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 17pt;"> <p class="ListParagraph1">EN</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.22%; height: 17pt;"> <p class="MsoNormal">Enable test point</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.88%; height: 17pt;"> <p class="MsoNormal">High = Enable, Low = Disable.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">GND</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.22%; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Ground</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.88%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Ground.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Audio IN</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.22%; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Analog source input</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.88%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Stereo analog source input.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">SPK OUT</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.22%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Speaker output</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.88%; height: 17pt;"> <p class="MsoNormal">Stereo analog to Speaker Amplifier. (Left & Right Channel Output)</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 17pt;"> <p class="ListParagraph1">Gain</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.22%; height: 17pt;"> <p class="MsoNormal">Gain setting</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.88%; height: 17pt;"> <p class="ListParagraph1">Gain test-pin, High = 31dB, Low = 26dB.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 13.9%; height: 17pt;"> <p class="ListParagraph1">Plimit</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 22.22%; height: 17pt;"> <p class="MsoNormal">Plimit setting</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 5.4pt; width: 63.88%; height: 17pt;"> <p class="MsoNormal">Power limit level. (5W, 10W, MAX) (Short = Enable, Open = Disable)</p> </td> </tr> </tbody> </table>

7. Power-up & Measurement Procedure

<p class="MsoListParagraph">1. Connect input power supply (8V < PVCC < 17V) and ground to PVCC and GND pins respectively.</p> <p class="MsoListParagraph">2. The 1X2 Header GVDD and HPVDD (GVDD2) Short.</p> <p class="MsoListParagraph">3. The 1X3 Header (GAIN) is the Gain setting. (High = 31dB, Low = 26dB).</p> <p class="MsoListParagraph">4. The 1X2 Header (5W, 10W, MAX) is the Plimit setting. (Short = Enable, Open = Disable).</p> <p class="MsoListParagraph">5. Connect stereo analog source input to IN_L (L_CH Input), IN_R (R_CH Input) RCA Jack.</p> <p class="MsoListParagraph">6. Connect speaker to the GP1 (P_L), GP2 (N_L), GP3 (P_R), GP4 (N_R).</p> <p class="MsoListParagraph">7. The 1X3 Header (EN) is the Enable controlled. (High = Enable, Low = Disable).</p>

8. Schematic, Bill of Materials & Board Layout

<h3>EVB Schematic Diagram</h3> <p class="21"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9116gqw/html-images/image002_en.jpg" class="fancybox"><img width="681" height="515" width="681" height="515" id="圖片 2" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9116gqw/html-images/image002_en.jpg" /></a></p>

9. Bill of Materials

<table width="680" class="MsoNormalTable" style="border: currentColor; margin-left: 1.65pt; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 17pt;"> <td style="background: #009eb8; padding: 0cm 1.4pt; border: 1pt solid #009eb8; width: 112.45pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal"><a name="_Toc409666848">Reference</a></p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">Qty</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 17pt; white-space: nowrap;"> <p class="Default">Part Number </p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">Description</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">Package</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">Manufacturer</p> </td> </tr> <tr style="height: 1cm;"> <td style="background: white; border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 112.45pt; height: 1cm; white-space: nowrap;"> <p class="MsoNormal">U1</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 1cm; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 1cm; white-space: nowrap;"> <p class="MsoNormal">RT9116GQW</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 1cm; white-space: nowrap;"> <p class="MsoNormal">10W stereo Class-D <br /> Speaker Amplifier</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 1cm;"> <p class="MsoNormal">WQFN-28L 4x5</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 1cm; white-space: nowrap;"> <p class="MsoNormal">Richtek</p> </td> </tr> <tr style="height: 17pt;"> <td style="background: white; border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 112.45pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">CT1, CT2</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">2</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">CT100F</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">100μF/50V</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">EC-2P_8</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">JACKCON</p> </td> </tr> <tr style="height: 17pt;"> <td style="background: white; border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 112.45pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C1, C6, C12, C16</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">4</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C1608X5R1C224K</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">0.22μF/16V/X5R</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C-0603</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height: 17pt;"> <td style="background: white; border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 112.45pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C2, C9, C13, C18</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">4</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C1608X5R1H222K</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">2.2nF/50V/X5R</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C-0603</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height: 17pt;"> <td style="background: white; border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 112.45pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C3, C7</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">2</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C1608X5R1H102K</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1nF/50V/X5R</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C-0603</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height: 17pt;"> <td style="background: white; border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 112.45pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C4, C8, C25, C28, C29</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">5</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C1608X5R1H104K</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">0.1μF/50V/X5R</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C-0603</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height: 17pt;"> <td style="background: white; border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 112.45pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C10, C11, C21</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">3</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C1608X5R1H105K</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1μF/50V/X5R</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C-0603</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height: 17pt;"> <td style="background: white; border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 112.45pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C15, C17, C19, C20</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">4</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C1608X5R1E105K</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1μF/25V/X5R</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C-0603</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height: 17pt;"> <td style="background: white; border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 112.45pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C22, C27</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">2</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C1608X5R1E104K</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">0.1μF/25V/X5R</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C-0603</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height: 17pt;"> <td style="background: white; border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 112.45pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C23</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C2012X5R1C225K</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">2.2μF/16V/X5R</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C-0805</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height: 17pt;"> <td style="background: white; border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 112.45pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C26</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C2012X5R1C106K</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">10μF/16V/X5R</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C-0805</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height: 17pt;"> <td style="background: white; border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 112.45pt; height: 17pt;"> <p class="MsoNormal">FB1, FB3, FB5, FB6</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">4</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">UPZ2012E601-2R0TF</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">600Ω±25%</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">0805</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">Sunlord</p> </td> </tr> <tr style="height: 17pt;"> <td style="background: white; border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 112.45pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">FB2, FB4</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">2</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">RTT05000JTP</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">0R/0805/±5%</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">R-0805</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">Ralec</p> </td> </tr> <tr style="height: 1cm;"> <td style="background: white; border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 112.45pt; height: 1cm; white-space: nowrap;"> <p class="MsoNormal">FB7, R10, R11, R12, R13</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 1cm; white-space: nowrap;"> <p class="MsoNormal">5</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 1cm; white-space: nowrap;"> <p class="MsoNormal">WR06X000PTL</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 1cm; white-space: nowrap;"> <p class="MsoNormal">0R/0603/±1%</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 1cm; white-space: nowrap;"> <p class="MsoNormal">R-0603</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 1cm; white-space: nowrap;"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height: 17pt;"> <td style="background: white; border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 112.45pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">R1</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">WR08X10R0FTL</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">10R/0805/±1%</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">R-0805</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height: 17pt;"> <td style="background: white; border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 112.45pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">R2, R3, R6</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">3</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">WR06X1003FTL</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">100K/0603/±1%</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">R-0603</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height: 17pt;"> <td style="background: white; border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 112.45pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">R4, R7</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">2</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">WR06X1503FTL</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">150K/0603/±1%</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">R-0603</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height: 17pt;"> <td style="background: white; border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 112.45pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">R5</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">RTT034992FTP</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">49.9K/0603/±1%</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">R-0603</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">Ralec</p> </td> </tr> <tr style="height: 17pt;"> <td style="background: white; border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 112.45pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">R8</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">WR06X2003FTL</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">200K/0603/±1%</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">R-0603</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height: 17pt;"> <td style="background: white; border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 112.45pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">R9</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">WR06X2492FTL</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">24.9K/0603/±1%</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">R-0603</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height: 17pt;"> <td style="background: white; border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 112.45pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">R14</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 39.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 107.1pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">WR06X4993FTL</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 99.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">499K/0603/±1%</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 84.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">R-0603</p> </td> <td style="background: white; border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor #009eb8 #009eb8 currentColor; padding: 0cm 1.4pt; width: 66.7pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">WALSIN</p> </td> </tr> </tbody> </table>

10. PCB Layout

<p class="23CxSpMiddle"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9116gqw/html-images/image003_en.jpg" class="fancybox"><img width="378" height="349" width="378" height="349" id="圖片 10" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9116gqw/html-images/image003_en.jpg" /></a></p> <p class="23CxSpLast">Top View (1^st layer)</p> <p class="MsoNormal"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9116gqw/html-images/image004_en.jpg" class="fancybox"><img width="377" height="339" width="377" height="339" id="圖片 11" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9116gqw/html-images/image004_en.jpg" /></a></p> <p class="10">PCB Layout—Inner Side (2^nd Layer)</p> <p class="MsoNormal"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9116gqw/html-images/image005_en.jpg" class="fancybox"><img width="377" height="339" width="377" height="339" id="圖片 12" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9116gqw/html-images/image005_en.jpg" /></a></p> <p class="10">PCB Layout—Inner Side (3^rd Layer)</p> <p class="MsoNormal"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9116gqw/html-images/image006_en.jpg" class="fancybox"><img width="377" height="339" width="377" height="339" id="圖片 13" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9116gqw/html-images/image006_en.jpg" /></a></p> <p class="10">Bottom View (4^th Layer)</p>
