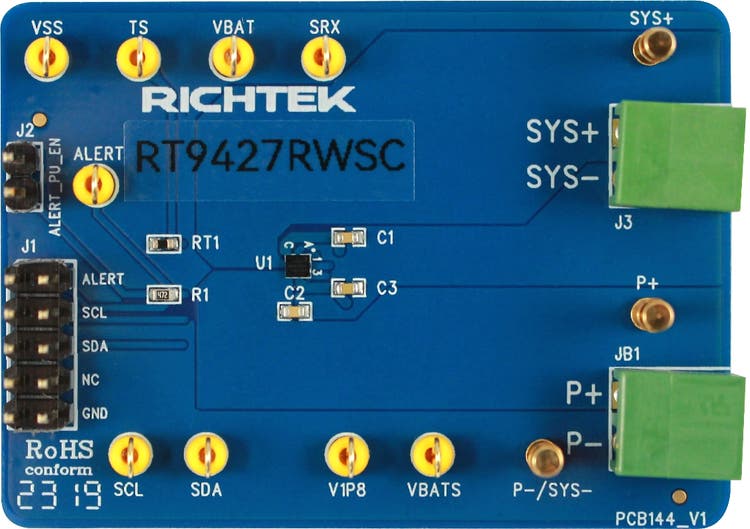

EVB_RT9427RWSC

width

fixed-width

basicInfoImageSection

anchor

overviewSection

i18n(anchor-tab.overview-section.title)

overviewSectionAnchorTab

designResourceSection

i18n(anchor-tab.design-resource-section.title)

designResourceSectionAnchorTab

relatedProductSection

i18n(anchor-tab.related-product-section.title)

relatedProductSectionAnchorTab

orderingInformationSection

i18n(anchor-tab.ordering-information-section.title)

orderingInformationSectionAnchorTab

width

full-width

anchorSection

overview

1. General Description

The Evaluation Board demonstrates the RT9427RWSC to provide fuel gauging for single-cell battery packs. The RT9427R reports StateOfCharge, StateOfHealth, FullChargeCapacity, TimeToEmpty and CycleCount. The RT9427R also provides complete battery status monitor with interrupt alarm function. It can alert to host processor actively when condition of battery over/undervoltage, over-temperature in charge/discharge and overcurrent in charge/discharge.

2. Performance Sepcification Summary

Summary of the RT9427RWSC Evaluation Board performance specificiaiton is provided in Table 1. The ambient temperature is 25°C. Table 1. RT9427RWSC Evaluation Board Performance Specification Summary <div> <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="226" style="width:169.85pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Specification </td> <td width="265" style="width:199.1pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Test Conditions </td> <td width="46" style="width:34.8pt;border:solid #009EB8 1.0pt;border-left:none; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Min </td> <td width="47" style="width:35.45pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Typ </td> <td width="51" style="width:38.1pt;border:solid #009EB8 1.0pt;border-left:none; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Max </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Unit </td> </tr> <tr style="height:17.0pt"> <td width="226" style="width:169.85pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Operation Voltage </td> <td width="265" style="width:199.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> VBAT - VSS </td> <td width="46" style="width:34.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> 2.5 </td> <td width="47" style="width:35.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td width="51" style="width:38.1pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> 5.5 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> V </td> </tr> <tr style="height:39.7pt"> <td width="226" style="width:169.85pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> Active Current </td> <td width="265" style="width:199.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> Active mode, VDD = 3.8V, BD_PRES_EN = 0 and not including external temp. measurement current. </td> <td width="46" style="width:34.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:39.7pt"> -- </td> <td width="47" style="width:35.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> 12 </td> <td width="51" style="width:38.1pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:39.7pt"> 20 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> μA </td> </tr> <tr style="height:39.7pt"> <td width="226" style="width:169.85pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> Sleep Current </td> <td width="265" style="width:199.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> Sleep mode, VDD = 3.8V, BD_PRES_EN = 0 and not including external temp. measurement current. </td> <td width="46" style="width:34.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:39.7pt"> -- </td> <td width="47" style="width:35.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> 5 </td> <td width="51" style="width:38.1pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:39.7pt"> 12 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> μA </td> </tr> <tr style="height:17.0pt"> <td width="226" style="width:169.85pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Shutdown Current </td> <td width="265" style="width:199.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> VBAT = 3.8V, LDO off </td> <td width="46" style="width:34.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> -- </td> <td width="47" style="width:35.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1 </td> <td width="51" style="width:38.1pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> 1.5 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> μA </td> </tr> <tr style="height:17.0pt"> <td width="226" style="width:169.85pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1.8V LDO </td> <td width="265" style="width:199.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td width="46" style="width:34.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> -- </td> <td width="47" style="width:35.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1.85 </td> <td width="51" style="width:38.1pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> V </td> </tr> <tr style="height:17.0pt"> <td width="226" style="width:169.85pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Voltage Measurement Range </td> <td width="265" style="width:199.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td width="46" style="width:34.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> 2.5 </td> <td width="47" style="width:35.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td width="51" style="width:38.1pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> VBAT </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> V </td> </tr> <tr style="height:17.0pt"> <td width="226" style="width:169.85pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Voltage Measurement Error </td> <td width="265" style="width:199.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> VBAT = 4V </td> <td width="46" style="width:34.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> -5 </td> <td width="47" style="width:35.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td width="51" style="width:38.1pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> 5 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> mV </td> </tr> <tr style="height:17.0pt"> <td width="226" style="width:169.85pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Sense Resistor Value </td> <td width="265" style="width:199.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> TA = 25°C </td> <td width="46" style="width:34.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> -- </td> <td width="47" style="width:35.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 8 </td> <td width="51" style="width:38.1pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> mΩ </td> </tr> <tr style="height:1.0cm"> <td width="226" rowspan="3" style="width:169.85pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Recommended Input Current of Sense Resistor (Note 1) </td> <td width="265" style="width:199.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Continuous current at 100% device utilization </td> <td width="46" style="width:34.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:1.0cm"> -- </td> <td width="47" style="width:35.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> -- </td> <td width="51" style="width:38.1pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:1.0cm"> 3 </td> <td rowspan="3" style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> A </td> </tr> <tr style="height:1.0cm"> <td width="265" style="width:199.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Continuous current at 10% device utilization </td> <td width="46" style="width:34.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:1.0cm"> -- </td> <td width="47" style="width:35.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> -- </td> <td width="51" style="width:38.1pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:1.0cm"> 4 </td> </tr> <tr style="height:39.7pt"> <td width="265" style="width:199.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> Peak pulsed current, 250ms maximum pulse width,10% maximum duty cycle, 1% device utilization </td> <td width="46" style="width:34.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:39.7pt"> -- </td> <td width="47" style="width:35.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> -- </td> <td width="51" style="width:38.1pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:39.7pt"> 5 </td> </tr> <tr style="height:17.0pt"> <td width="226" style="width:169.85pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Current Measurement Gain Error </td> <td width="265" style="width:199.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> (Note 2) </td> <td width="46" style="width:34.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> -1 </td> <td width="47" style="width:35.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td width="51" style="width:38.1pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> 1 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> % </td> </tr> <tr style="height:1.0cm"> <td width="226" style="width:169.85pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Current Measurement Offset Error </td> <td width="265" style="width:199.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> |VVBAT - VSRX| = 0V (Note 3) </td> <td width="46" style="width:34.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:1.0cm"> -1 </td> <td width="47" style="width:35.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> -- </td> <td width="51" style="width:38.1pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:1.0cm"> 1 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> mA </td> </tr> <tr style="height:17.0pt"> <td width="226" rowspan="2" style="width:169.85pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Temperature Measurement Error </td> <td width="265" style="width:199.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> TA = 0°C to 45°C (Note 4) </td> <td width="46" style="width:34.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> -1 </td> <td width="47" style="width:35.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td width="51" style="width:38.1pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> 1 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> °C </td> </tr> <tr style="height:17.0pt"> <td width="265" style="width:199.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> TA = -40°C to 85°C (Note 4) </td> <td width="46" style="width:34.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> -3 </td> <td width="47" style="width:35.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td width="51" style="width:38.1pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> 3 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> °C </td> </tr> <tr style="height:1.0cm"> <td width="226" style="width:169.85pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Internal Temperature Measurement Range </td> <td width="265" style="width:199.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> </td> <td width="46" style="width:34.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:1.0cm"> -40 </td> <td width="47" style="width:35.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> -- </td> <td width="51" style="width:38.1pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:1.0cm"> 85 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> °C </td> </tr> <tr style="height:1.0cm"> <td width="226" style="width:169.85pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Internal Temperature Measurement Error </td> <td width="265" style="width:199.1pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> TA = 25°C </td> <td width="46" style="width:34.8pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:1.0cm"> -- </td> <td width="47" style="width:35.45pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> ±3 </td> <td width="51" style="width:38.1pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:1.0cm"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> °C </td> </tr> </table> </div> Note 1. Guaranteed by design and not production tested. Note 2. Needs firmware compensation parameter applied for temperature coefficient of resistor. Note 3.Typical result is long time average. Note 4. The thermistor is uses 10k NTC and beta 3435k, default is SEMITEC 103KT1608T.

3. Power-up Procedure

<h3>Suggestion Required Equipments</h3> <ul> <li>RT9427RWSC Evaluation Board </li> <li>DC Power Supply Capable of 6V and 5A </li> <li>1-Series (1sXp) Li-Ion/Li-Polymer Battery Cell </li> <li>Electronic Load Capable of 5A</li> <li>I2C communication Host</li> </ul>

4. Proper measurement equipment setup and follow the procedure below.

The Evaluation Board is fully assembled and tested. Follow the steps below to verify board operation. 1) Insert battery to battery connector between P+ and P- 2) For discharge, connect electronic load from SRX to P-, adjust the discharge current according to battery spec. 3) For charge, connect DC power supply from SRX to P-, adjust the CV/CC according to battery spec. 4) Get the information like StateOfCharge, StateOfHealth, FullChargeCapacity, TimeToEmpty, CycleCount, Voltage, Current, and Temperature by I2C interface. Note 5. Contact with RICHTEK for detatiled battery characterizing to get custom parameter for high accuracy StateOfCharge (SOC)report.

5. Detailed Description of Hardware

<h3>Headers Description and Placement</h3> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image001_en.png"><img width="491" height="346" id="圖片 3" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image001_en.png" alt="一張含有文字, 電子工程, 電路, 螢幕擷取畫面的圖片自動產生的描述" /></a> Carefully inspect all the components used in the EVB according to the following Bill of Materials table, and then make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a>.

6. Test Points

The EVB is provided with the test points and pin names listed in the table below. <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;margin-left:1.85pt;border-collapse:collapse; border:none"> <thead> <tr style="height:1.0cm"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Test Point/ Pin Name </td> <td width="85%" style="width:85.36%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Function </td> </tr> </thead> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> ALERT </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Alert open-drain indicator output. </td> </tr> <tr style="height:1.0cm"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> SDA </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Serial data input. Slave I2C serial communications data line for communication with system. Open-drain I/O. </td> </tr> <tr style="height:1.0cm"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> SCL </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Serial cock input. Slave I2C serial communications clock line for communication with system. Open-drain I/O. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> TS </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Temperature measurement input. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> VSS </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Device ground. </td> </tr> <tr style="height:1.0cm"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> V1P8 </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> 1.8V LDO output. Connect 2.2μF ceramic capacitor to VSS. It cannot provide power for other device in the system. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> VBATS </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Battery voltage sensing input. Connect to battery positive terminal with kelvin connection. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> SRX </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Battery current sensing positive input. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> VBAT </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Power supply input and battery current sensing negative input. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> JB1 </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Battery connector. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> J1 </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> I2C communication interface. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> J2 </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Alert pull-high enable. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> J3 </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Load/Charger connector. </td> </tr> </table>

7. Bill of Materials

<div> <table class="TableNormal" border="1" cellspacing="0" cellpadding="0" width="680" style="border-collapse:collapse;border:none"> <thead> <tr style="height:17.0pt"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Reference </td> <td width="38" style="width:28.7pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Count </td> <td width="161" style="width:120.4pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Part Number </td> <td width="95" style="width:71.4pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Value </td> <td width="119" style="width:89.55pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Description </td> <td width="104" style="width:77.7pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Package </td> <td width="93" style="width:69.5pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Manufacturer </td> </tr> </thead> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> U1 </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 1 </td> <td width="161" style="width:120.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> RT9427RWSC </td> <td width="95" style="width:71.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> RT9427R </td> <td width="119" style="width:89.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Single-Cell Fuel Gauge </td> <td width="104" style="width:77.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> WL-CSP-9B 1.68x1.81 (BSC) </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> RICHTEK </td> </tr> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> C1 </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 1 </td> <td width="161" style="width:120.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0603B104K500CT </td> <td width="95" style="width:71.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 0.1µF </td> <td width="119" style="width:89.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Capacitor, Ceramic, 25V, X7R </td> <td width="104" style="width:77.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0603 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> WALSIN </td> </tr> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> C2 </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 1 </td> <td width="161" style="width:120.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0603X105K250CT </td> <td width="95" style="width:71.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 1µF </td> <td width="119" style="width:89.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Capacitor, Ceramic, 25V, X5R </td> <td width="104" style="width:77.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0603 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> WALSIN </td> </tr> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> C3 </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 1 </td> <td width="161" style="width:120.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> GRM188R61A225KE34 </td> <td width="95" style="width:71.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 2.2µF </td> <td width="119" style="width:89.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Capacitor, Ceramic, 10V, X5R </td> <td width="104" style="width:77.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0603 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> Murata </td> </tr> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> RT1 </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 1 </td> <td width="161" style="width:120.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> C1608X7R1H104KT </td> <td width="95" style="width:71.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 10k </td> <td width="119" style="width:89.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> NTC Resistor, Chip, 3435K, 1% </td> <td width="104" style="width:77.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0603 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> SEMITEC </td> </tr> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> R1 </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 1 </td> <td width="161" style="width:120.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> WR06X4701FTL </td> <td width="95" style="width:71.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 4.7k </td> <td width="119" style="width:89.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Resistor, Chip, 1/10W, 1% </td> <td width="104" style="width:77.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0603 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> WALSIN </td> </tr> </table> </div>

8. Typical Applications

<h3>EVB Schematic Diagram</h3> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image002_en.png"><img border="0" width="684" height="493" id="Picture 8" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image002_en.png" alt="Technical Document Image Preview" /></a>

9. Measure Result

<table class="MsoNormalTable" border="1" cellspacing="0" cellpadding="0" style="margin-left:26.35pt;border-collapse:collapse;border:none"> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Voltage ADC Error vs. Temperature </td> <td width="307" style="width:230.35pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Current ADC Error vs. Temperature </td> </tr> <tr style="height:168.2pt"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:168.2pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image003_en.png"><img border="0" width="292" height="228" id="圖片 1" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image003_en.png" alt="Technical Document Image Preview" /></a> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:168.2pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image004_en.png"><img border="0" width="293" height="238" id="圖片 5" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image004_en.png" alt="Technical Document Image Preview" /></a> </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Temp. Measurement Error vs. Temperature </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> SOC Accuracy* </td> </tr> <tr style="height:172.95pt"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:172.95pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image005_en.jpg"><img border="0" width="292" height="217" id="圖片 14" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image005_en.jpg" alt="Technical Document Image Preview" /></a> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:172.95pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image006_en.jpg"><img border="0" width="293" height="221" id="圖片 13" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image006_en.jpg" alt="Technical Document Image Preview" /></a> </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Load / Temperature Transient SOCAccuracy 1/2* </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Load / Temperature Transient SOC Accuracy 2/2* </td> </tr> <tr style="height:172.95pt"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:172.95pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image007_en.png"><img border="0" width="292" height="219" id="圖片 26" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image007_en.png" alt="Technical Document Image Preview" /></a> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:172.95pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image008_en.png"><img border="0" width="292" height="212" id="圖片 16" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image008_en.png" alt="Technical Document Image Preview" /></a> </td> </tr> </table> <table class="MsoNormalTable" border="1" cellspacing="0" cellpadding="0" style="margin-left:26.35pt;border-collapse:collapse;border:none"> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt"> High Pulse Discharge SOC Accuracy 1/2* </td> <td width="307" style="width:230.35pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> High Pulse Discharge SOC Accuracy 2/2* </td> </tr> <tr style="height:172.95pt"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:172.95pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image009_en.png"><img border="0" width="293" height="213" id="圖片 19" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image009_en.png" alt="Technical Document Image Preview" /></a> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:172.95pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image010_en.jpg"><img border="0" width="293" height="215" id="圖片 15" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image010_en.jpg" alt="Technical Document Image Preview" /></a> </td> </tr> </table> *: Sample accuracy with custom parameter into the IC.

10. Evaluation Board Layout

Figure 1 and Figure 2 are RT9427RWSC Evaluation Board layout. This board size is 55mm x 40mm and is constructed on two-layer PCB with 1 oz. Cu. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image011_en.jpg"><img border="0" width="492" height="356" id="圖片 6" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image011_en.jpg" alt="一張含有文字, 螢幕擷取畫面, 圖表, 數字的圖片自動產生的描述" /></a> Figure 1. Top View <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image012_en.jpg"><img border="0" width="491" height="355" id="圖片 8" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9427rwsc/html-images/image012_en.jpg" alt="一張含有螢幕擷取畫面, 圖表, 圓形, Rectangle 的圖片自動產生的描述" /></a> Figure 2. Bottom View
