RTQ2103A 是一款功能完整的 6V、2A、先進固定導通時間（ACOT®）同步降壓轉換器，內建兩顆 MOSFET。先進 COT 操作可在寬負載範圍內最佳化暫態響應，並可有效減少外部元件數量與輸出電容需求。本文件說明RTQ2103A 開發板（EVB）的功能與使用方式，並提供開發板佈局、原理圖、物料清單（BOM）與量測結果等資訊，以符合個別需求。

EVB_RTQ2103AGSP-QA

width

fixed-width

basicInfoImageSection

anchor

overviewSection

i18n(anchor-tab.overview-section.title)

overviewSectionAnchorTab

designResourceSection

i18n(anchor-tab.design-resource-section.title)

designResourceSectionAnchorTab

relatedProductSection

i18n(anchor-tab.related-product-section.title)

relatedProductSectionAnchorTab

orderingInformationSection

i18n(anchor-tab.ordering-information-section.title)

orderingInformationSectionAnchorTab

width

full-width

anchorSection

overview

1. General Description

The RTQ2103A is a full featured 6V, 2A, Advanced Constant-On-Time (ACOT®) synchronous step-down converter with two integrated MOSFETs. The advanced COT operation allows transient responses to be optimized over a wide range of loads, and output capacitors to efficiently reduce external component count. This document explains the function and use of the RTQ2103A evaluation board (EVB) and provides information for the evaluation board layout, schematic, bill of materials (BOM) and measurement results to suit individual requirements.

2. Performance Specification Summary

Summary of the RTQ2103AGSP-QA Evaluation Board performance specificiaiton is provided in Table 1. The ambient temperature is 25°C. Table 1. RTQ2103AGSP-QA Evaluation Board Performance Specification Summary <div> <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td style="border:solid #009EB8 1.0pt;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> Specification </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Test Conditions </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Min </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Typ </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Max </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Unit </td> </tr> <tr style="height:17.0pt"> <td style="border:solid #009EB8 1.0pt;border-top:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> Input Voltage Range </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 3 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 6 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> V </td> </tr> <tr style="height:17.0pt"> <td style="border:solid #009EB8 1.0pt;border-top:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> Output Current </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 0 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 2 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> A </td> </tr> <tr style="height:17.0pt"> <td style="border:solid #009EB8 1.0pt;border-top:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> Default Output Voltage </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 0.45 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 3.3 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> V </td> </tr> <tr style="height:17.0pt"> <td style="border:solid #009EB8 1.0pt;border-top:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> Operation Frequency </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 2200 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 2700 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 3000 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> kHz </td> </tr> <tr style="height:17.0pt"> <td style="border:solid #009EB8 1.0pt;border-top:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> Output Ripple Voltage </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> VIN = 3.3V, VOUT = 1.2V, IOUT = 2A </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 10 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> mVp-p </td> </tr> <tr style="height:17.0pt"> <td style="border:solid #009EB8 1.0pt;border-top:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> Line Regulation </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> IOUT = 0A, VIN = 3V to 6V </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> ±1 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> % </td> </tr> <tr style="height:17.0pt"> <td style="border:solid #009EB8 1.0pt;border-top:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> Load Regulation </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> VIN = 3.3V, VOUT = 1.2V, IOUT = 1mA to 2A </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> ±1 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> % </td> </tr> <tr style="height:17.0pt"> <td style="border:solid #009EB8 1.0pt;border-top:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> Load Transient Response </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> IOUT = 650mA to 1.37A </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> ±5 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> % </td> </tr> <tr style="height:17.0pt"> <td style="border:solid #009EB8 1.0pt;border-top:none;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> Maximum Efficiency </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> VIN = 5V, VOUT = 3.3V, IOUT = 0.5A </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 93.2 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> % </td> </tr> </table> </div>

3. Power-up & Measurement Procedure

1. Apply a 5V nominal input power supply (3V < VIN < 6V) to the VIN and GND terminals. 2. Set the jumper at JP1 to connect terminals 1 and 2, connecting EN to enable operation. 3. Verify the output voltage (approximately 3.3V) between VOUT and GND. 4. Connect an external load up to 2A to the VOUT and GND terminals and verify the output voltage and current.

4. Output Voltage Setting

Set the output voltage with the resistive divider (R24, R29) between VOUT and GND with the midpoint connected to FB. The output is set by the following formula: <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image001_en.png"><img width="180" height="45" id="圖片 5" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image001_en.png" alt="Technical Document Image Preview" /></a> The placement of the resistive divider should be within 5mm of the FB pin. The resistance of R29 is suggested between 10kΩ and 150kΩ to minimize power consumption, and noise pick-up at the FB pin. The resistance of R24 can then be obtained as below: <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image002_en.png"><img width="192" height="51" id="圖片 6" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image002_en.png" alt="Technical Document Image Preview" /></a> For better output voltage accuracy, divider resistors (R24 and R29) should have tolerance of ±1% tolerance or better.

5. Detailed Description of Hardware

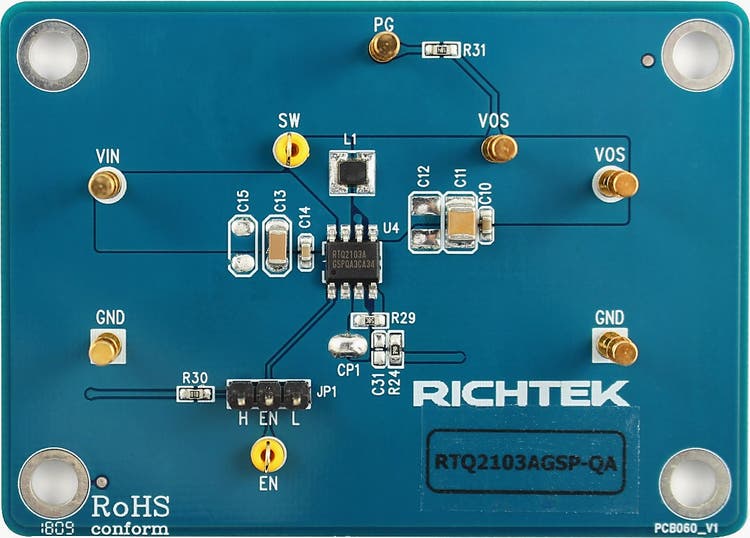

<h3>Headers Description and Placement </h3> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image003_en.png"><img width="491" height="352" id="圖片 1" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image003_en.png" alt="Technical Document Image Preview" /></a> Carefully inspect all the components used in the EVB according to the following Bill of Materials table, and then make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a>.

6. Test Points

The EVB is provided with the test points and pin names listed in the table below. <div> <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;border-collapse:collapse;border:none"> <tr style="height:1.0cm"> <td width="13%" style="width:13.9%;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Test point/ Pin name </td> <td width="27%" style="width:27.72%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Signal </td> <td width="58%" style="width:58.38%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Comment (expected waveforms or voltage levels on test points) </td> </tr> <tr style="height:1.0cm"> <td width="13%" style="width:13.9%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> EN </td> <td width="27%" style="width:27.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Enable Test Point </td> <td width="58%" style="width:58.38%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Chip enable. Externally pulled high to enable and pulled low to disable this chip. </td> </tr> <tr style="height:1.0cm"> <td width="13%" style="width:13.9%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> PGND, GND </td> <td width="27%" style="width:27.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Power Ground </td> <td width="58%" style="width:58.38%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> The exposed pad must be soldered to a large PCB and connected to PGND for maximum power dissipation. </td> </tr> <tr style="height:17.0pt"> <td width="13%" style="width:13.9%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> AGND </td> <td width="27%" style="width:27.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Analog Ground </td> <td width="58%" style="width:58.38%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Should be electrically connected to GND close to the device. </td> </tr> <tr style="height:17.0pt"> <td width="13%" style="width:13.9%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> FB </td> <td width="27%" style="width:27.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Feedback </td> <td width="58%" style="width:58.38%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Feedback voltage input. </td> </tr> <tr style="height:1.0cm"> <td width="13%" style="width:13.9%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> VOS </td> <td width="27%" style="width:27.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Output Voltage Sense </td> <td width="58%" style="width:58.38%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Output voltage sense pin for the internal control loop. Must be connected to output. </td> </tr> <tr style="height:17.0pt"> <td width="13%" style="width:13.9%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> PG </td> <td width="27%" style="width:27.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Power Good Test Point </td> <td width="58%" style="width:58.38%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Output of power good indicator. </td> </tr> <tr style="height:17.0pt"> <td width="13%" style="width:13.9%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> SW </td> <td width="27%" style="width:27.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Switch Node Test Point </td> <td width="58%" style="width:58.38%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Switch node. </td> </tr> <tr style="height:17.0pt"> <td width="13%" style="width:13.9%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> VIN </td> <td width="27%" style="width:27.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Input Voltage </td> <td width="58%" style="width:58.38%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Power input. </td> </tr> </table> </div>

7. Bill of Materials

<div> <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="17%" style="width:17.56%;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Reference </td> <td width="5%" style="width:5.36%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Qty </td> <td width="27%" style="width:27.46%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Part Number </td> <td width="19%" style="width:19.44%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Description </td> <td width="15%" style="width:15.52%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Package </td> <td width="14%" style="width:14.66%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Manufacturer </td> </tr> <tr style="height:17.0pt"> <td width="17%" style="width:17.56%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> U4 </td> <td width="5%" style="width:5.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1 </td> <td width="27%" style="width:27.46%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> RTQ2103AGSP-QA </td> <td width="19%" style="width:19.44%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> DC-DC Converter </td> <td width="15%" style="width:15.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> PSOP-8 </td> <td width="14%" style="width:14.66%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> RICHTEK </td> </tr> <tr style="height:17.0pt"> <td width="17%" style="width:17.56%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> C10, C14 </td> <td width="5%" style="width:5.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 2 </td> <td width="27%" style="width:27.46%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> GRM188R71H104KA93D </td> <td width="19%" style="width:19.44%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 0.1µF/50V/X7R </td> <td width="15%" style="width:15.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 0603 </td> <td width="14%" style="width:14.66%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> MURATA </td> </tr> <tr style="height:17.0pt"> <td width="17%" style="width:17.56%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> C11 </td> <td width="5%" style="width:5.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1 </td> <td width="27%" style="width:27.46%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> GRM32E61E226KE15L </td> <td width="19%" style="width:19.44%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 22µF/25V/X5R </td> <td width="15%" style="width:15.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1210 </td> <td width="14%" style="width:14.66%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> MURATA </td> </tr> <tr style="height:17.0pt"> <td width="17%" style="width:17.56%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> C12 </td> <td width="5%" style="width:5.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1 </td> <td width="27%" style="width:27.46%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td width="19%" style="width:19.44%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> NC </td> <td width="15%" style="width:15.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1206 </td> <td width="14%" style="width:14.66%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> </tr> <tr style="height:17.0pt"> <td width="17%" style="width:17.56%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> C13 </td> <td width="5%" style="width:5.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1 </td> <td width="27%" style="width:27.46%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> C3216X5R1H106KT000N </td> <td width="19%" style="width:19.44%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 10µF/50V/X5R </td> <td width="15%" style="width:15.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1206 </td> <td width="14%" style="width:14.66%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> TDK </td> </tr> <tr style="height:17.0pt"> <td width="17%" style="width:17.56%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> C15 </td> <td width="5%" style="width:5.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1 </td> <td width="27%" style="width:27.46%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td width="19%" style="width:19.44%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> NC </td> <td width="15%" style="width:15.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1206 </td> <td width="14%" style="width:14.66%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> </tr> <tr style="height:17.0pt"> <td width="17%" style="width:17.56%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> C31 </td> <td width="5%" style="width:5.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1 </td> <td width="27%" style="width:27.46%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td width="19%" style="width:19.44%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> NC </td> <td width="15%" style="width:15.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 0603 </td> <td width="14%" style="width:14.66%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> </tr> <tr style="height:17.0pt"> <td width="17%" style="width:17.56%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> L1 </td> <td width="5%" style="width:5.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1 </td> <td width="27%" style="width:27.46%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> PST25201B-1R0MS </td> <td width="19%" style="width:19.44%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1µH </td> <td width="15%" style="width:15.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 2x2.5x1.2mm </td> <td width="14%" style="width:14.66%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> CYNTEC </td> </tr> <tr style="height:17.0pt"> <td width="17%" style="width:17.56%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> R24 </td> <td width="5%" style="width:5.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1 </td> <td width="27%" style="width:27.46%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> WR06X6532FTL </td> <td width="19%" style="width:19.44%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 249k </td> <td width="15%" style="width:15.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 0603 </td> <td width="14%" style="width:14.66%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> WALSIN </td> </tr> <tr style="height:17.0pt"> <td width="17%" style="width:17.56%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> R29 </td> <td width="5%" style="width:5.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1 </td> <td width="27%" style="width:27.46%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> WR06X3922FTL </td> <td width="19%" style="width:19.44%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 39.2k </td> <td width="15%" style="width:15.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 0603 </td> <td width="14%" style="width:14.66%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> WALSIN </td> </tr> <tr style="height:17.0pt"> <td width="17%" style="width:17.56%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> R30 </td> <td width="5%" style="width:5.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1 </td> <td width="27%" style="width:27.46%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> WR06X1003FTL </td> <td width="19%" style="width:19.44%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 100k </td> <td width="15%" style="width:15.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 0603 </td> <td width="14%" style="width:14.66%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> WALSIN </td> </tr> <tr style="height:17.0pt"> <td width="17%" style="width:17.56%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> R31 </td> <td width="5%" style="width:5.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1 </td> <td width="27%" style="width:27.46%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> WR06X1803FTL </td> <td width="19%" style="width:19.44%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 180k </td> <td width="15%" style="width:15.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <a name="OLE_LINK1">0603</a> </td> <td width="14%" style="width:14.66%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> WALSIN </td> </tr> <tr style="height:17.0pt"> <td width="17%" style="width:17.56%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> CP1 </td> <td width="5%" style="width:5.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 1 </td> <td width="27%" style="width:27.46%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td width="19%" style="width:19.44%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Short </td> <td width="15%" style="width:15.52%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td width="14%" style="width:14.66%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> </tr> </table> </div>

8. Typical Applications

<h3>EVB Schematic Diagram</h3> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image004_en.png"><img border="0" width="680" height="238" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image004_en.png" alt="Technical Document Image Preview" /></a> Note : 1. Do not hot-plug a live 5V supply to the board; if hot-plugging is required, add ~100µF electrolytic capacitor at the input. A small feedforward capacitor (C31) can be introduced into the feedback network to speed up the transient response of high output voltage circuits. Adding C31 can also improve the light load PSM switching behavior. The feedforward capacitor is added across the upper FB divider. To optimize transient response, C31 value is chosen so that the gain and phase boost of the feedback network increases the bandwidth of the converter, while still maintaining an acceptable phase margin. Generally, larger C31 values provide higher bandwidth, but may result in an unacceptable phase margin or instability.

9. Measurement Results

<div> <table class="MsoNormalTable" border="1" cellspacing="0" cellpadding="0" width="684" style="border-collapse:collapse;border:none"> <tr> <td width="342" valign="top" style="width:256.5pt;border:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Output ripple measurement, 10mA load Cyan: V-SW; Blue: VOUT </td> <td width="342" valign="top" style="width:256.55pt;border:solid #009EB8 1.0pt; border-left:none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Output ripple measurement, 2A load Cyan: V-SW; Blue: VOUT </td> </tr> <tr> <td width="342" valign="top" style="width:256.5pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 5.4pt 0cm 5.4pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image005_en.jpg"><img border="0" width="302" height="227" id="圖片 15" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image005_en.jpg" alt="TEK00057" /></a> </td> <td width="342" valign="top" style="width:256.55pt;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image006_en.jpg"><img border="0" width="302" height="227" id="圖片 14" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image006_en.jpg" alt="TEK00063" /></a> </td> </tr> <tr> <td width="342" valign="top" style="width:256.5pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 5.4pt 0cm 5.4pt"> Output ripple: 9.8mVpp (PSM mode) </td> <td width="342" valign="top" style="width:256.55pt;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt"> Output ripple: 4.6mVpp, Frequency: 2.634MHz </td> </tr> </table> </div> <div> <table class="MsoTableGrid" border="1" cellspacing="0" cellpadding="0" style="border-collapse:collapse;border:none"> <tr> <td width="342" style="width:256.5pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Dynamic load 650mA to 1.37A (PWM) Blue: VOUT; Green: Load current step </td> <td width="342" style="width:256.5pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Fast dynamic load 90mA to 810mA (PSM – PWM transition) Blue: VOUT; Green: Load current step </td> </tr> <tr> <td width="342" valign="top" style="width:256.5pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 5.4pt 0cm 5.4pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image007_en.jpg"><img border="0" width="302" height="227" id="圖片 13" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image007_en.jpg" alt="TEK00054" /></a> </td> <td width="342" valign="top" style="width:256.5pt;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image008_en.jpg"><img border="0" width="302" height="227" id="圖片 12" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image008_en.jpg" alt="TEK00055" /></a> </td> </tr> <tr> <td width="342" valign="top" style="width:256.5pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 5.4pt 0cm 5.4pt"> Overshoot: 25.2mV, undershoot: 26.8mV </td> <td width="342" valign="top" style="width:256.5pt;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt"> Overshoot: 24.8mV, undershoot: 28mV </td> </tr> </table> </div> <div> <table class="MsoTableGrid" border="1" cellspacing="0" cellpadding="0" style="border-collapse:collapse;border:none"> <tr> <td width="340" style="width:254.85pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt"> OCP measurement: Dynamic load close to OCP Blue: VOUT; Purple: PGOOD; Green: IOUT </td> <td width="340" style="width:254.85pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> OCP measurement: Increase load current to reach OC limit Blue: VOUT; Purple: PGOOD; Green: IOUT </td> </tr> <tr> <td width="340" valign="top" style="width:254.85pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 5.4pt 0cm 5.4pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image009_en.jpg"><img border="0" width="302" height="227" id="圖片 11" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image009_en.jpg" alt="TEK00058" /></a> </td> <td width="340" valign="top" style="width:254.85pt;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image010_en.jpg"><img border="0" width="302" height="227" id="圖片 10" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image010_en.jpg" alt="TEK00059" /></a> </td> </tr> <tr> <td width="340" valign="top" style="width:254.85pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 5.4pt 0cm 5.4pt"> V-out starts to drop at 3.46A load current </td> <td width="340" valign="top" style="width:254.85pt;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt"> Auto-recovery hiccup mode when OC limit is exceeded </td> </tr> </table> </div> <div> <table class="MsoTableGrid" border="1" cellspacing="0" cellpadding="0" style="border-collapse:collapse;border:none"> <tr> <td width="342" valign="top" style="width:256.5pt;border:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Start-up measurement from Enable: EN pin low – high Cyan: V-Enable; Blue: VOUT; Purple: PGOOD; Green: IOUT </td> <td width="342" valign="top" style="width:256.5pt;border:solid #009EB8 1.0pt; border-left:none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Start-up measurement from VIN Cyan: VIN; Blue: VOUT; Purple: PGOOD; Green: IOUT </td> </tr> <tr> <td width="342" valign="top" style="width:256.5pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 5.4pt 0cm 5.4pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image011_en.jpg"><img border="0" width="302" height="227" id="圖片 9" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image011_en.jpg" alt="TEK00060" /></a> </td> <td width="342" valign="top" style="width:256.5pt;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image012_en.jpg"><img border="0" width="302" height="227" id="圖片 8" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image012_en.jpg" alt="TEK00061" /></a> </td> </tr> <tr> <td width="342" valign="top" style="width:256.5pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 5.4pt 0cm 5.4pt"> Start-up time 304µsec. Soft-start 224µsec </td> <td width="342" valign="top" style="width:256.5pt;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt"> VIN > 2.4V initiates start-up </td> </tr> </table> </div> <div> <table class="MsoTableGrid" border="1" cellspacing="0" cellpadding="0" style="border-collapse:collapse;border:none"> <tr> <td width="343" valign="top" style="width:256.9pt;border:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> 100% Duty cycle test Cyan: V-SW; Blue: VOUT; Purple: VIN </td> </tr> <tr> <td width="343" valign="top" style="width:256.9pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 5.4pt 0cm 5.4pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image013_en.jpg"><img border="0" width="319" height="227" id="圖片 18" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image013_en.jpg" alt="Technical Document Image Preview" /></a> </td> </tr> </table> </div>

10. Efficiency Measurements

5V to 3.3V <table class="MsoNormalTable" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;margin-left:1.65pt;border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="136" nowrap style="width:102.0pt;border:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> VIN (V) </td> <td width="136" nowrap style="width:102.05pt;border:solid #009EB8 1.0pt; border-left:none;background:#009EB8;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> VOUT (V) </td> <td width="136" nowrap style="width:102.05pt;border:solid #009EB8 1.0pt; border-left:none;background:#009EB8;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> IIN (A) </td> <td width="136" nowrap style="width:102.05pt;border:solid #009EB8 1.0pt; border-left:none;background:#009EB8;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> IOUT (A) </td> <td width="136" nowrap style="width:102.05pt;border:solid #009EB8 1.0pt; border-left:none;background:#009EB8;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> Efficiency (%) </td> </tr> <tr style="height:17.0pt"> <td width="136" nowrap style="width:102.0pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 4.99896 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 3.30416 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.00084 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.00101 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 79.4 </td> </tr> <tr style="height:17.0pt"> <td width="136" nowrap style="width:102.0pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 4.99982 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 3.30873 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.00376 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.00498 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 87.7 </td> </tr> <tr style="height:17.0pt"> <td width="136" nowrap style="width:102.0pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 4.99951 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 3.31045 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.00738 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.00997 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 89.4 </td> </tr> <tr style="height:17.0pt"> <td width="136" nowrap style="width:102.0pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 4.99876 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 3.32859 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.03655 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.05001 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 91.1 </td> </tr> <tr style="height:17.0pt"> <td width="136" nowrap style="width:102.0pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 4.99914 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 3.31526 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.07247 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.10001 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 91.5 </td> </tr> <tr style="height:17.0pt"> <td width="136" nowrap style="width:102.0pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 5.00026 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 3.30779 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.21491 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.30016 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 92.4 </td> </tr> <tr style="height:17.0pt"> <td width="136" nowrap style="width:102.0pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 4.99888 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 3.31052 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.35531 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.50022 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 93.2 </td> </tr> <tr style="height:17.0pt"> <td width="136" nowrap style="width:102.0pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 4.99927 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 3.31346 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.49902 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.70030 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 93 </td> </tr> <tr style="height:17.0pt"> <td width="136" nowrap style="width:102.0pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 4.99959 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 3.31701 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 0.72110 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.00040 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 92 </td> </tr> <tr style="height:17.0pt"> <td width="136" nowrap style="width:102.0pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 5.00025 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 3.32051 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.10942 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.50068 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 89.8 </td> </tr> <tr style="height:17.0pt"> <td width="136" nowrap style="width:102.0pt;border:solid #009EB8 1.0pt; border-top:none;padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 5.00018 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 3.32091 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 1.52368 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 2.00095 </td> <td width="136" nowrap style="width:102.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:17.0pt"> 87.2 </td> </tr> </table> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image014_en.png"><img border="0" width="500" id="圖片 16" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image014_en.png" alt="Technical Document Image Preview" /></a>

11. Evaluation Board Layout

<a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image015_en.jpg"><img border="0" width="491" height="351" id="圖片 2" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image015_en.jpg" alt="Technical Document Image Preview" /></a> Figure 1. Top View <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image016_en.jpg"><img border="0" width="491" height="353" id="圖片 4" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rtq2103agsp-qa/html-images/image016_en.jpg" alt="Technical Document Image Preview" /></a> Figure 2. Bottom View
