R7735 系列產品是 R7732/3 的後繼產品，並與至今大多數在市場上的 SOT-23-6 / DIP-8 產品完全相容。它是一款增強型的 PWM 控制器，並擁有極佳的綠能性能，特別是在輕載或無負載狀態下。它的優點是在不同的應用中 "容易設計"，且節省設計成本與外部元件。除了在特性部分所示的一般特點之外，R7735 包含各樣的保護選項在內，如內部的超載保護（OLP）、過壓保護（OVP），可省去外部保護電路。此外，它還有次級整流器短路保護（SRSP）和 CS 接腳開路保護。這些保護電路使得要設計可靠、安全的電源系統更為容易。R7735 具備成本低和體積小的特點，是專為NB電源轉接器的電源供應所設計的。借著簡單的電路，即可實現精確的外部過壓保護 (OVP) 和過溫保護 (OTP)。啟動電阻也可以由洩流電阻 (bleeder resistor) 來取代，以節省功率損耗和元件數量。

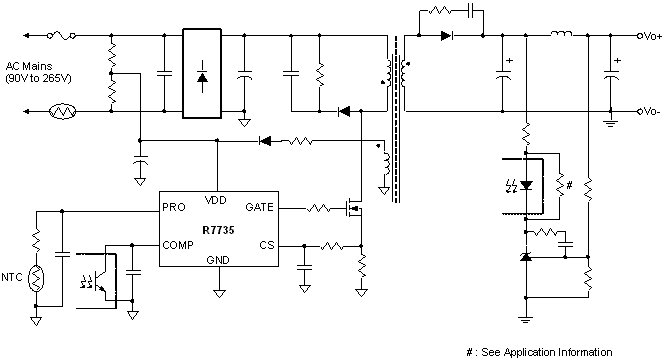

R7735 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>無負載輸入功率小於100mW </li><li>精確的超載保護 </li><li>9V/14V欠壓鎖定 (UVLO) </li><li>電流模式控制 </li><li>斜率補償 </li><li>內部前緣遮沒 </li><li>極佳的綠能性能 </li><li>逐週期電流限制 </li><li>內部過壓保護 (OVP) </li><li>次級整流器短路保護 </li><li>光耦合器短路保護 </li><li>回授開迴路保護 </li><li>CS接腳開路保護 </li><li>可抖動的頻率 </li><li>PRO 接腳提供外部隨意過壓、過溫保護 (OVP/OTP) </li><li>抑制電磁干擾的軟啟動 </li><li>高雜訊抗擾性 </li><li>符合RoHS標準及不含鹵素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

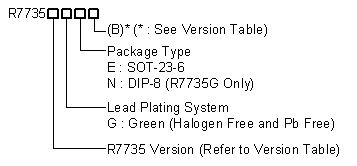

R7735 訂購資訊
