RT1738是USB Type-C介面過壓保護IC，可將CC/SBU端子從與相鄰VBUS短路事件中可能接觸的3.3V~21V PD傳輸電壓可能帶來的危害裡保護下來，其保護能力最高可達28V。</br>RT1738還根據IEC61000-4-2對ESD接觸放電的要求對CON_CC1/CON_CC2提供±8KV、對CON_SBU1/CON_SBU2提供±6KV靜電防護能力，CON_CC1/CON_CC2的衝擊電壓的消除能力達±35V，過壓保護的回應速度達到60ns，可確保系統晶片在應用中的安全。</br>RT1738的封裝形式為WQFN 3x3。

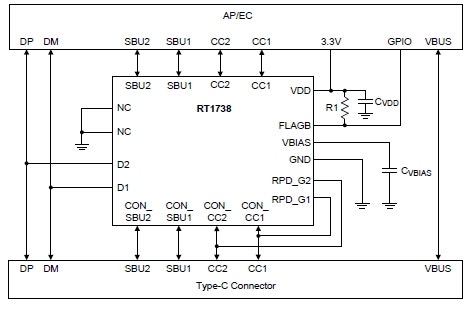

RT1738 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>對CON_CC1/CON_CC2/CON_SBU1/CON_SBU2提供過壓保護 </li><li>符合IEC61000-4-2的接觸靜電釋放防護能力 <ul class="lv2"> <li></li><li>CON_CC1/2：±8kV </li><li>CON_SBU1/2：±6kV </li></ul> </li><li>CON_CC1/2和CON_SBU1/2耐受電壓能力為28V </li><li>CC/SBU過壓保護回應時間為60ns </li><li>CC信號開關導通阻抗：255mΩ </li><li>SBU信號開關導通阻抗：3.6Ω </li><li>待機電流消耗：40μA </li><li>SBU開關頻寬：1.1GHz </li><li>支援Dead Battery狀態 </li><li>20引腳WQFN 3x3封裝 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

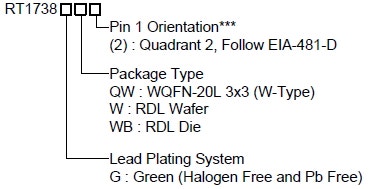

RT1738 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT1738
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT1738
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>個人電腦和筆記型電腦 </li><li>智慧手機和平板電腦 </li><li>電視機和顯示器 </li><li>USB-C Dongle/Docking/Hubs </li></ul></div>
