RT1738C 是針對 USB-C 型介面應用的過壓保護 IC，可為臨近VBUS 的 CC、SBU 引腳提供高達 28V 的保護能力，它們因 USB PD 協議容許傳輸 3.3V~21V 電壓而面臨風險。</br>RT1738C 也集成了符合 IEC61000-4-2 所定規格的 ESD 保護能力，使 CON_CC1/CON_CC2 和 CON_SBU1/CON_SBU2 可分別承受 ±8kV 和 ±6kV 的接觸靜電釋放。此外，其極快的過壓保護回應速度亦可為系統側的各種電路帶來不受高壓損害的保護。

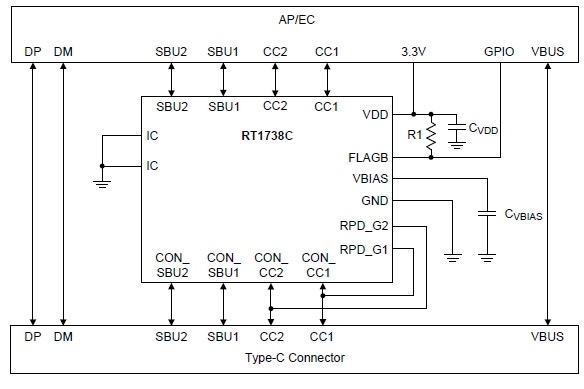

RT1738C 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>為 CON_CC1、CON_CC2、CON_SBU1 和 CON_SBU2 共 4 個通道提供過壓保護 </li><li>符合 IEC61000-4-2 規格的接觸靜電釋放保護 <ul class="lv2"> <li></li><li>CON_CC1/CON_CC2：±8kV </li><li>CON_SBU1/CON_SBU2：±6kV </li></ul> </li><li>CON_CC1、CON_CC2、CON_SBU1 和 CON_SBU2 各端子可承受電壓高達 28V </li><li>SBU 端過壓保護回應時間為 60ns </li><li>CC 端過壓保護回應時間為 80ns </li><li>CC 線開關導通電阻典型值為 255mΩ </li><li>SBU 線開關導通電阻典型值為 3.6Ω </li><li>待機靜態電流消耗為 40μA </li><li>SBU 線開關信號頻寬為 1GHz </li><li>支援電池失效狀態 </li><li>WL-CSP-16B 1.62x1.62 (BSC) 封裝 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher
RT1738C 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT1738C
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT1738C
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>個人電腦、筆記型電腦 </li><li>智慧手機和平板電腦 </li><li>電視機和顯示器 </li><li>使用 USB-C 型介面的 Dongle、Docking 和 集線器 </li></ul></div>
