RT2657是一款高效率的脈寬調變（PWM）降壓型DC/ DC轉換器，能在寬輸入電壓2.7V至5.5V範圍下，提供600mA輸出電流。RT2657非常適合於那些由單節鋰離子電池或其他電源來供電的可攜式電子裝置，如手機，PDA，手持裝置，遊戲機及相關配件。有低R<sub>DS(ON)</sub>的內部同步整流器能顯著降低PWM模式時的導通損耗。在實際應用中，無需外部蕭基二極體。當正常的脈衝 - 寬度模式不能提供穩定的輸出電壓時，RT2657會進入低壓差模式而連續導通高側的P-MOSFET。當EN接腳為低電位時，RT2657會進入電源關閉模式，僅消耗小於5μA的電流。由於操作頻率固定在 2.25MHz，開關切換造成的漣波很容易藉小尺寸的過濾元件而過濾掉。RT2657採用小型WDFN-6SL 2x2封裝。

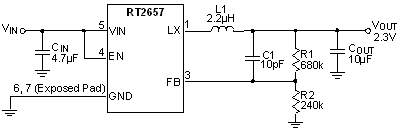

RT2657 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>V<sub>IN</sub>範圍 : 2.7V至 5.5V </li><li>V<sub>OUT</sub> 範圍 : 0.6V至 5.5V (100% 責任週期操作 ) </li><li>V<sub>REF</sub> = 0.6V </li><li>I<sub>SD</sub> ≤ 5μA (V<sub>EN</sub> = 0V) </li><li>電流模式控制與內部補償 </li><li>固定 F<sub>SW</sub> 2.25MHz </li><li>R<sub>DS(ON)</sub> 230mΩ 高側 / 250mΩ 低側 (P-MOSFET/N-MOSFET) </li><li>啟用 (V<sub>IH</sub> = 1V, V<sub>IL</sub> = 0.4V); 內部軟啟動 (0.3ms) </li><li>最高600mA的輸出電流 </li><li>高達90%的高效率 </li><li>I<sub>LIMIT</sub> 峰值 ( 典型值 1.5A / 最小值 0.8A) ；欠壓鎖定 (UVLO)，欠壓保護 (UVP)， V<sub>IN</sub> 和 V<sub>OUT</sub> 過壓保護 (OVP) 及過溫保護(OTP) 150°C </li><li>無需蕭基二極體 </li><li>內部補償以減少外部元件數 </li><li>符合RoHS標準及不含鹵素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

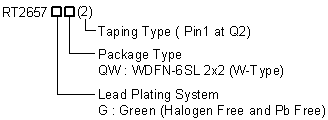

RT2657 訂購資訊
