RT2702 是與 DrMOS 配套使用的高效、大電流同步 Buck 控制器，使用 COT 固定導通時間控制架構，可生成控制 DrMOS 的 PWM 信號，外部電路元件數量少、設計簡單容易，其 FCOT 柔性固定導通時間控制技術對輸入電壓的變化可即時做出回應。它內含的 5V 線性穩壓器可為 DrMOS 供電，其負載能力達 100mA。為兼顧效率和瞬態回應特性，RT2702 在輕載條件下可在兩種模式間進行切換，其一是 ASM 音訊跨越模式以獲得高轉換效率，另一個是具有較好瞬態回應特性的 FCCM 強制電流連續模式。在電流檢測方面，RT2702 既支援傳統的 DCR 網路電感電流檢測，也支援智慧功率級提供的電流監測方法。</br>RT2702 還具有 Power Good 指示、外部可挑的軟啟動設定、軟關機放電功能、精確的電流檢測、使能/禁能控制、過壓保護、欠壓保護、電流限制和過熱關機保護等功能等功能，所有這一切都被集成在 WQFN-16L 3x3 封裝裡。

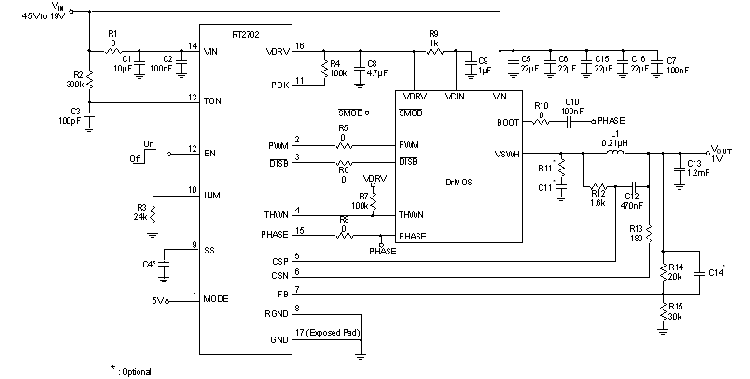

RT2702 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>輸入電壓範圍：4.5V~19V </li><li>輸出電壓可調，0.6V 參考電壓在全溫度範圍內的精度為 1% </li><li>FCOT<sup>™</sup> 柔性固定導通時間控制技術 </li><li>集成 5V 線性穩壓器為 DrMOS 提供 100mA 供電 </li><li>支援輸出預偏置應用 </li><li>可調軟啟動 </li><li>輸出端放電實現軟關機 </li><li>工作頻率可調 </li><li>過流限制閾值可調 </li><li>Power Good 指示 </li><li>過壓保護、欠壓保護和輸入欠壓鎖定保護 </li><li>支援 DCR 和 SPS 電流檢測方式 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

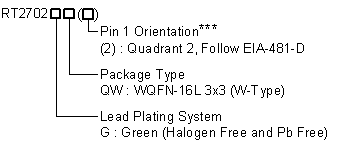

RT2702 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT2702
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT2702
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>分散式大電流電源系統 </li><li>資料通信和電信系統 </li><li>工業電源 </li></ul></div>
