RT2910A 是一款整合高壓（HV）開關驅動器的 PWM 反相轉換器。高壓開關驅動器可保護負載免受高電壓瞬態衝擊，並在過壓事件發生時，透過控制外部 N 通道 MOSFET 的閘極（Gate）來調節輸出電壓，將輸出限制於安全範圍內，使負載能夠持續正常運作。 RT2910A 同時監測 VHV 與 SNS 腳位之間的壓降，以提供過電流故障保護。內建放大器會將電流感測電壓限制在 50mV。若故障狀況持續存在，外部 MOSFET 將被關閉；經過一段冷卻時間後，閘極驅動訊號會重新啟用，使 MOSFET 再次導通。此外，高壓開關驅動器亦支援背對背 MOSFET（Back-to-Back FET）架構，以防止輸出端產生反向漏電流。 高效率 PWM 反相轉換器可協助設計人員實現低雜訊、小尺寸的負電壓 DC-DC 電源方案。RT2910A 可在 +4V 至 +7V 的輸入電壓範圍內運作，並產生 -0.5V 至 -12.5V 的負輸出電壓。 為了降低開關雜訊，RT2910A 採用電流模式固定頻率 PWM 控制架構。開關頻率可透過外接電阻設定於 300kHz 至 800kHz 範圍內。

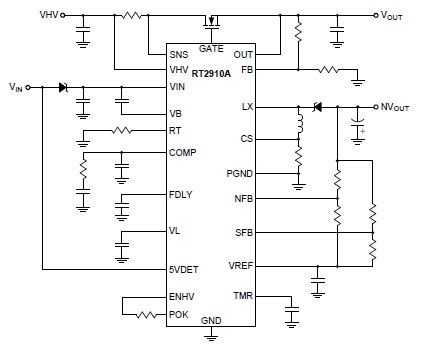

RT2910A 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>HV Switch Driver <ul class="lv2"> <li></li><li>Adjustable Output Clamp Voltage </li><li>Over-Current Protection </li><li>Wide Operation Range : 5V to 60V </li><li>Reverse Input Protection to −60V </li><li>Adjustable Fault Timer </li><li>Support N-MOSFET </li></ul> </li><li>Inverting PWM Converter <ul class="lv2"> <li></li><li>-12.5V to -0.5V Output </li><li>Integrate High-Side P-MOSFET </li><li>300kHz to 800kHz Switching Frequency </li><li>Current-Mode PWM Control </li><li>Internal Soft-Start </li><li>Power Ok Indicator </li></ul> </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

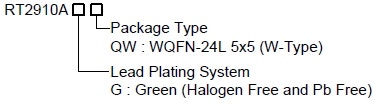

RT2910A 訂購資訊
