RT4831A是供可擕式設備使用的液晶屏偏置電源兼4通道WLED背光源驅動器，其WLED背光源驅動器可以最高29V電壓驅動4個並聯的WLED串，各串電流可用I<SUP>2</SUP>C介面和/或外部PWM輸入進行控制以獲得60μA~30mA的輸出，其解析度高達11位，可表現為指數或線性特性。供給液晶屏的偏置電源由一個Boost轉換器、一個線性穩壓器和一個實現極性反轉的電荷泵提供正、負壓輸出，其負載能力可達150mA，輸出電壓可經I<SUP>2</SUP>C介面在±4V~±6.5V之間以50mV的級差進行設定。RT4831A的封裝形式為WL-CSP-24B 1.84x2.68(BSC)。

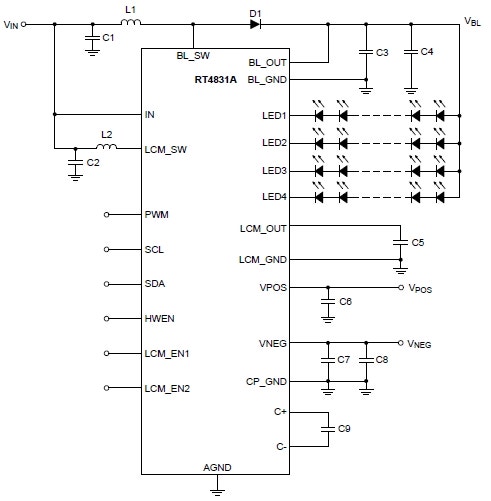

RT4831A 電路圖
