RT5090E內含1個Buck控制器、3路高效率的同步Buck轉換器、1路低壓差線性穩壓器、I<SUP>2</SUP>C控制介面和一些週邊邏輯控制電路。</br>RT5090E支援靜音功能，能在電源輸入中斷時消除爆裂音，支援快速儲存設定資訊。RT5090E支援12V至24V單輸入的系統或12V至24V+3.3V待機電源的系統。RT5090E使用WQFN-40L 5x5封裝。

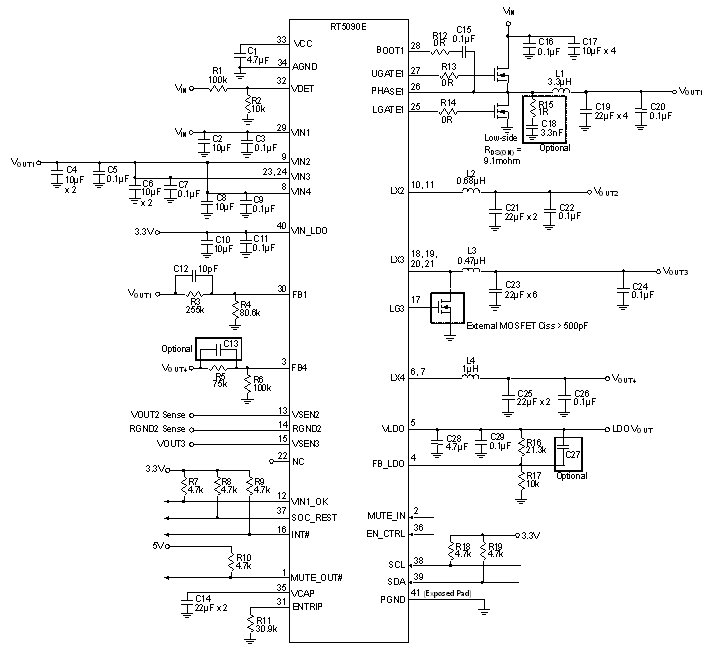

RT5090E 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>Buck1 <ul class="lv2"> <li></li><li>5V電源控制器 </li><li>MOSFET外置 </li><li>輕載高效的PSK設計 </li></ul> </li><li>Buck2 <ul class="lv2"> <li></li><li>支援PSK模式的3A Buck轉換器 </li><li>支援動態電壓調節，級差10mV </li><li>I<sup>2</sup>C介面可調輸出電壓範圍：0.7V至1.5V </li></ul> </li><li>Buck3 <ul class="lv2"> <li></li><li>支援PSK模式的6A Buck轉換器 </li><li>利用外加下橋MOSFET，負載能力可達6A </li><li>支援動態電壓調節，級差10mV </li><li>I<sup>2</sup>C介面可調輸出電壓範圍：0.7V至1.5V </li></ul> </li><li>Buck4 <ul class="lv2"> <li></li><li>支援PSK模式的3A Buck轉換器 </li><li>輸出電壓可調 </li></ul> </li><li>低壓差線性穩壓器 <ul class="lv2"> <li></li><li>0.6A負載能力 </li><li>輸出電壓可調 </li></ul> </li><li>欠壓保護方式：閉鎖或打嗝模式 </li><li>過壓保護方式：閉鎖模式 </li><li>上電過程復位SOC </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher
RT5090E 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT5090E
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT5090E
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>電視系統 </li></ul></div>
