RT5091C是專為3.3V或5V供電的固態硬碟 (Solid State Drive, SSD) 準備的完整電源解決方案，它將三組高效的同步Buck轉換器和一路低壓差線性穩壓器集成在一起，可從單一輸入同時獲得多個電壓輸出，可支援使用不同VID和需要不同啟動時序的應用。<br>RT5091C能根據需要提供可配置的輸出電壓為ASIC內核、DDR記憶體、Flash I/O和PHY等供電。藉助其I<sup>2</sup>C介面，它支援動態電壓調節 (DVS)、PS3.5和PS4，將待機電源消耗最小化。

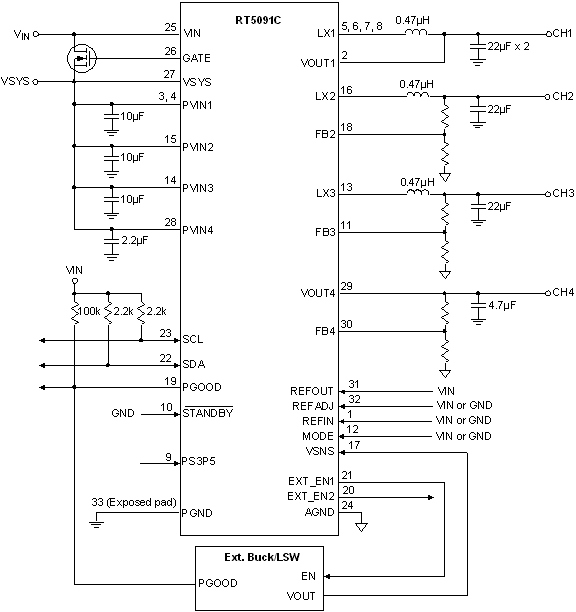

RT5091C 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>輸入電壓範圍：2.8V至5.5V </li><li>三組可配置的高效Buck轉換器，預設工作頻率為2MHz <ul class="lv2"> <li></li><li>CH1，ASIC內核電源，負載能力4A，輸出電壓可通過REFIN或I<sup>2</sup>C介面在0.7V至1.3V間以10mV為級距進行調節 </li><li>CH2，DDR電源，負載能力2A，通過FB2進行輸出電壓設置 </li><li>CH3，Flash I/O電源，負載能力2A，通過FB3進行輸出電壓設置 </li></ul> </li><li>一路低耗電線性穩壓器，為類比和PHY供電，負載能力300mA，通過FB4進行輸出電壓設置 </li><li>通過控制外加N-MOSFET消除電源輸入端的衝擊電流 </li><li>所有通道均有內置軟起動和電流限制保護 </li><li>通過STANDBY實現休眠控制 </li><li>預留2個外部調節器或開關控制引腳 </li><li>預留一個檢測外部調節器或開關輸出電壓的端子 </li><li>通過高速I<sup>2</sup>C介面可對CH1輸出電壓進行調節 </li><li>通過PGOOD輸出可監測VSYS、CH1-CH3和線性穩壓器的輸出電壓狀況 </li><li>RST_L可指示系統重定條件 </li><li>啟動期間的時序控制 </li><li>具備過壓保護、欠壓保護、欠壓鎖定保護和熱關機保護功能 </li><li>32引腳WQFN封裝 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher
RT5091C 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT5091C
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT5091C
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>固態硬碟 </li></ul></div>
