RT5133 是內含 8 個線性穩壓器的攝像感測器電源管理 IC，可為其提供 2 個 DVDD、4 個 AVDD、1 個 VIO、1 個 VAF 電源供應和 3 個 GPO 信號端子，所有輸出的電壓、軟啟動時間和保護特性均可通過 I<SUP>2</SUP>C 寫入寄存器的資料進行控制。</br>LDO1 可用作 IO 部分的電源（VIO）；LDO2 可用作自動聚焦單元的電源（VAF）；LDO3~LDO6 可用作 AVDD 的電源；LDO7/8可用作 DVDD 的電源；3 個 GPO 端子可用於控制外部設備的控制信號或作其他用途。</br>RT5133 的封裝形式為 WL-CSP-25B 1.84x1.84 (BSC)。

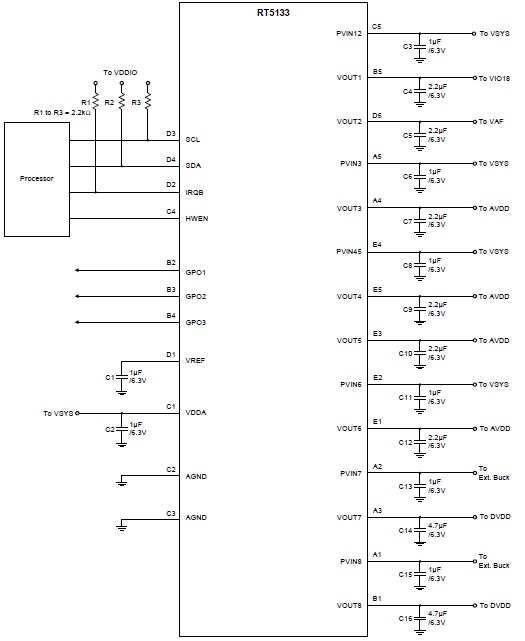

RT5133 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>全域 <ul class="lv2"> <li></li><li>硬體使能端 </li><li>I<sup>2</sup>C 控制介面 </li><li>可程式設計的通道開/關順序 </li><li>IRQB 輸出指示 </li><li>輸入欠壓保護 </li><li>過熱保護 </li></ul> </li><li>LDO1/2 <ul class="lv2"> <li></li><li>為 VIO18 和自動聚焦電路供電 </li><li>輸入電壓範圍：2.8V~5V </li><li>輸出電壓 I<sup>2</sup>C 可調 </li><li>PSRR = 70dB@1kHz </li><li>300mA 負載能力 </li></ul> </li><li>LDO3/4/5/6 <ul class="lv2"> <li></li><li>為 AVDD 供電 </li><li>輸入電壓範圍：2.8V~5V </li><li>輸出電壓 I<sup>2</sup>C 可調 </li><li>PSRR = 85dB@1kHz </li><li>300mA 負載能力 </li></ul> </li><li>LDO7/8 <ul class="lv2"> <li></li><li>為 DVDD 供電 </li><li>輸入電壓範圍：1.1V~5V </li><li>輸出電壓 I<sup>2</sup>C 可調 </li><li>PSRR = 75dB@1kHz </li><li>600mA/1000mA 負載能力 </li></ul> </li><li>GPO <ul class="lv2"> <li></li><li>3 個端子，可用於控制其他調節器 </li></ul> </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher
RT5133 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT5133
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT5133
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>行動電話 </li><li>個人資訊助理 </li><li>平板電腦 </li><li>可擕式儀器 </li></ul></div>
