RT5509是具有邊緣切割喇叭保護演算法的單聲道BTL D放大器。此外，採用DC-DC升壓轉換器可為D類放大器提供有效的電源。I<SUP>2</SUP>S介面支援兩種不同的音頻源，而一對輔助DATAI / O用於立體聲模式或直通應用。晶片信息包括增益、喇叭保護輸出或電流檢測能夠通過DATAO通過適當的寄存器設置進行監控。揚聲器保護提供機械/熱保護，精準度為額定限制的10%/±10°C。

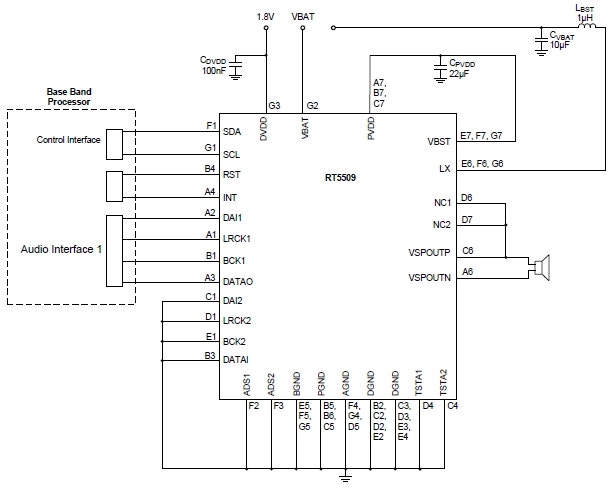

RT5509 電路圖
