RT5710B是簡單易用的1A同步Buck轉換器，輸入電壓範圍為2.5V至6V，採用精準的0.6V參考電壓，集成了低內阻的MOSFET功率開關，轉換效率高，使用WDFN-6L 2x2封裝。</br>RT5710B採用電流模式-固定導通時間模式 (CMCOT) 控制架構，具有極快速的瞬態回應特性，外部補償元件少，在各種工作條件下的工作頻率均保持基本恆定，以強制性的PWM工作模式工作以提供高精度的電壓調整性能。</br>RT5710B通過檢測下橋開關流過的電流實現過流保護，這種保護是逐週期進行的，可在各種嚴酷的條件如輸出短路、超載或電感飽和等情形下確保器件安全。在啟動期間，內建的軟起動特性可避免在輸入端出現過大的衝擊電流。過熱停機的熱保護特性可確保高溫情況下的安全，其他情形下則可確保穩定工作。RT5710B以WDFN-6L 2x2封裝形式供貨。

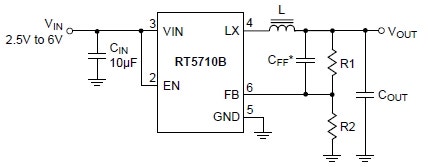

RT5710B 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>集成了160mΩ /110mΩ功率開關的1A轉換器 </li><li>輸入電壓範圍：2.5V至6V </li><li>輸出電壓範圍：0.6V至3.4V </li><li>電流模式-固定導通時間模式 (CMCOT) 控制架構 </li><li>超快速瞬態回應能力 </li><li>無需外部補償元件 </li><li>針對低ESR陶瓷輸出電容進行了優化 </li><li>高精度回饋參考電壓：0.6V±2% </li><li>利用下橋進行過流保護 </li><li>強制PWM工作模式 </li><li>固定工作頻率：1.5MHz </li><li>內置軟起動 </li><li>輸出端預偏置時保持啟動過程的單調性 </li><li>輸入欠壓鎖定保護 </li><li>打嗝模式的輸出欠壓保護 </li><li>使能控制 </li><li>WDFN-6L 2x2封裝 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

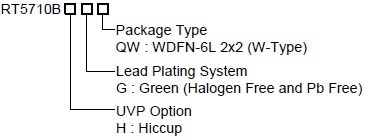

RT5710B 訂購資訊
