RT5715A 是一款 2A 高效率同步降壓轉換器（Synchronous Step-Down Converter），採用先進固定導通時間控制（Advanced Constant-On-Time，ACOT®）架構。產品可在 2.5V 至 5.5V 的輸入電壓範圍內運作，輸出電壓可設定於 0.45V 至 VIN 之間，以滿足各類低壓供電需求。 RT5715A 內建低導通電阻（RDS(ON)）功率 MOSFET，並採用低靜態電流設計，因此能在廣泛負載範圍內維持優異的轉換效率。先進 ACOT® 控制架構可在各種負載條件下提供優異的暫態響應能力，並允許使用較少的外部元件與輸出電容，有效降低系統成本及電路板面積。 本產品支援最高 2.7MHz 的開關頻率，可大幅縮小輸出電感與電容尺寸，適合空間受限的高密度電源設計應用。 RT5715A 內建完整保護機制，包括輸入欠壓鎖定保護（UVLO）、輸出欠壓保護（UVP）、過電流保護（OCP）以及過溫關機保護（Thermal Shutdown），提升系統可靠性與安全性。 逐週期限流保護（Cycle-by-Cycle Current Limit）可有效防止輸出短路造成損壞，而軟啟動（Soft-Start）功能則可抑制啟動期間的輸入湧入電流，確保系統平穩啟動。 RT5715A 採用 WDFN-8SL 2mm × 2mm 封裝。

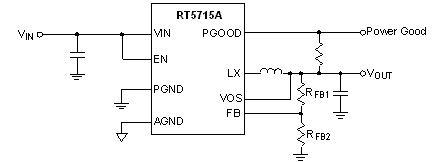

RT5715A 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>2A Converter Integrated 100mΩ and 80mΩ FETs in WDFN-8SL 2x2 Package </li><li>Input Supply Voltage Range : 2.5V to 5.5V </li><li>Output Voltage Range : 0.45V to V<sub>IN</sub> </li><li>Advanced Constant On-Time (ACOT<sup>®</sup>) Control <ul class="lv2"> <li></li><li>Ultrafast Transient Response </li><li>No Needs for External Compensations </li><li>Optimized for Low-ESR Ceramic Output Capacitors </li></ul> </li><li>High Accuracy Feedback Reference Voltage : 0.45V ± 1% </li><li>Low Quiescent Current : 30μA </li><li>Fixed Switching Frequency : 2.7MHz </li><li>Internally Fixed Soft-Start (typ. 150μs) </li><li>Safe Start-Up from Pre-biased Output </li><li>Input Under-Voltage Lockout (UVLO) </li><li>Output Under-Voltage Protection (UVP) with Hiccup Mode </li><li>Over-Temperature Protection (OTP) (Thermal Shutdown) </li><li>Enable Control </li><li>Power Good Indication </li><li>RoHS Compliant and Halogen Free </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

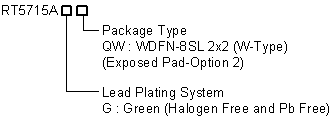

RT5715A 訂購資訊
