RT5758是可在3V至6.5V輸入電壓範圍內輸出高達9A電流的高性能同步Buck轉換器，使用集成化的低R<SUB>DS(ON)</SUB>功率開關、0.6V參考電壓和自舉二極體，整體方案體積小巧，容易使用。</br>RT5758使用ACOT<SUP>TM</SUP>控制架構，具有超快的瞬態回應速度，週邊元件數量極少。在穩定狀態下，ACOT控制器工作在頻率基本不變的狀態下，與輸入電壓、負載大小和輸出電壓基本無關，EMI濾波器設計非常容易。</br>該器件提供獨立的使能控制輸入端子和Power Good指示信號，易於使用在需要時序控制的設計中。為了限制啟動期間的輸入電流衝擊，晶片提供了可用外部電容調節的軟起動端SS。晶片還集成有逐週期電流限制保護、欠壓保護、輸入欠壓鎖定保護和過熱保護功能。</br>RT5758的封裝形式為UQFN-13L 3x3 (FC)。

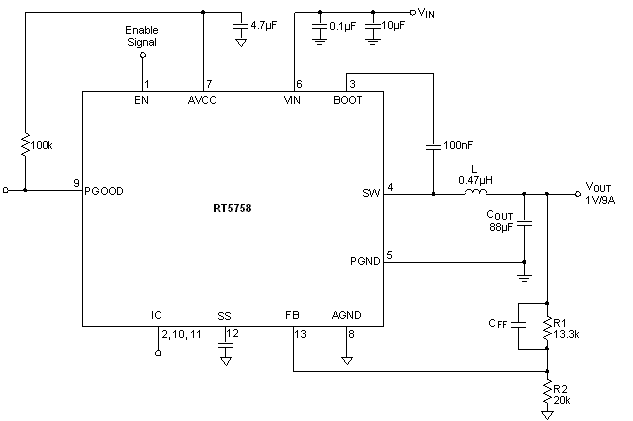

RT5758 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>超快速瞬態回應 </li><li>1MH±20%穩定的工作頻率 </li><li>1.5%精度參考電壓 </li><li>ACOT<sup>TM</sup>控制架構 </li><li>根據負載輕重自動選擇PWM/PSM工作模式 </li><li>針對陶瓷輸出電容進行了優化 </li><li>輸入電壓範圍：3V至6.5V </li><li>預偏置啟動 </li><li>可調軟起動 </li><li>Power Good指示 </li><li>使能控制 </li><li>過流保護與過熱保護 </li><li>打嗝模式的欠壓保護 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

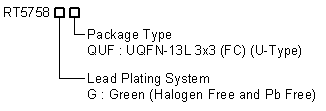

RT5758 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT5758
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT5758
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>行動電話和掌上型設備 </li><li>機上盒，纜線數據機，xDSL設備 </li><li>WLAN設備，SSD/HDD存儲裝置 </li><li>通用負載點電壓調節器 </li><li>電視機 </li></ul></div>
