RT6150A/B是高效率的、以固定頻率工作的Buck-Boost轉換器，可在輸入電壓高於、低於或等於輸出電壓的條件下工作，其內部架構使之能在各種工作模式之間平滑轉換，成為單節鋰離子電池、多節鹼性電池或鎳氫電池應用中的理想選擇，這些場合的輸出電壓介於電池電壓變化範圍內。</br>器件包含實現高效工作的兩個N-MOSFET開關和兩個P-MOSFET開關，工作頻率設定於1MHz，有利於減小外部元件尺寸。其靜態電流消耗在節能模式下僅有60μA，可使可擕式應用的電池壽命最大化。節能工作模式是可控的，將PS引腳拉低即可實現。假如PS處於高電平，固定工作頻率的工作模式即處於使能狀態。</br>器件還具有關機電流消耗低、內置軟起動、熱關機保護和電流限制保護等特性，RT6150A的封裝形式為WDFN-10L 3x3，RT6150B的封裝形式為WDFN-10L 2.5x2.5。

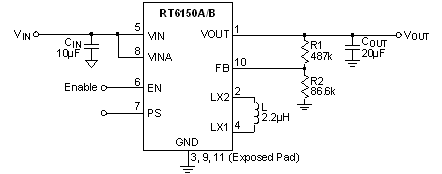

RT6150A/RT6150B 電路圖
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>僅需一隻電感 </li><li>無論電池電壓如何變化，工作頻率保持固定 </li><li>採用同步整流方式工作，效率高達90% </li><li>持續負載能力高達800mA </li><li>關機期間輸入、輸出完全斷開連接 </li><li>節能模式可控 </li><li>關機電流消耗<1μA </li><li>輸入電壓範圍：1.8V~5.5V </li><li>固定3.3V輸出；可調輸出電壓範圍：2.5V~5.5V </li><li>提供10引腳WDFN封裝 </li><li>符合RoHS規範，不含鹵素 </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

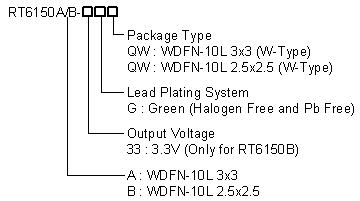

RT6150A/RT6150B 訂購資訊
