RT6179 是針對 USB PD 應用設計的 4 開關 Buck-Boost 控制器，可在 4.5V-36V 輸入電壓範圍內工作，輸出電壓可程式控制範圍為 3V-36V。它採用峰值電流模式控制架構，輸出可設定為恒流和恒壓模式以支援 USB PD3.0 SPR 工作模式和 28V 的 PD3.1 EPR 工作模式。它擁有 I<sup>2</sup>C 控制介面，通過它可對輸出電壓、電流、工作頻率、電纜壓降補償等參數進行設定，它也擁有輸入欠壓閉鎖保護、過壓、欠壓保護、逐週期電流限制保護、短路保護、過熱保護等完善的保護性設計，其封裝形式為 WQFN-40L 5x5。

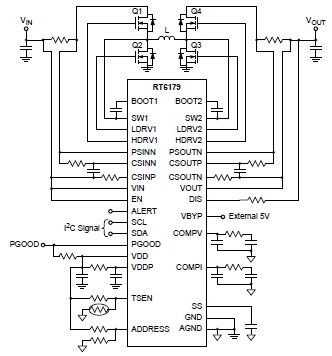

RT6179 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>支援 USB PD3.0 SPR 模式和 USB PD3.1 EPR 模式 28V 應用 </li><li>Buck-Boost 控制器 <ul class="lv2"> <li></li><li>輸入電壓範圍：4.5V-36V </li><li>輸出電壓範圍：3V-36V </li><li>峰值電流模式控制架構 </li><li>工作頻率 250kHz-1MHz 可調 </li><li>輕載時以節能模式提升效率 </li></ul> </li><li>AnyPower™ 特性：恒壓輸出以 12.5mV 為調節級距，恒流輸出有 9 位解析度 </li><li>I<sup>2</sup>C 控制介面 </li><li>可調軟啟動時間 </li><li>可調纜線壓降補償 </li><li>內建輸出放電電路 </li><li>Power Good 指示 </li><li>包含 UVLO、OVP、UVP、OCP、逐週期電流限制和 OTP 在內的全方位保護 </li><li>WQFN-40L 5x5 封裝 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

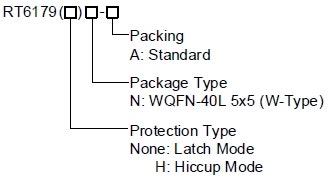

RT6179 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT6179
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT6179
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>顯示器 </li><li>USB PD 應用 </li><li>移動電源 </li></ul></div>
