RT6191A 是供 USB-PD 應用使用的 Buck 控制器，可在 4.5V-36V 輸入電壓範圍內使用，輸出電壓可調範圍為 3V-36V。RT6191A 採用峰值電流模式控制架構，可以可程式控制的定電壓和定電流輸出支援 USB PD3.0 SPR 模式和 28V USB PD3.1 EPR 模式。它內置電荷泵，可驅動低成本的 N-MOSFET 路徑開關。利用其帶有的 I<sup>2</sup>C 介面，RT6191A 的許多參數如輸出電壓、電流、工作頻率、纜線壓降補償等均可進行程式控制。它也集成了完整的保護性功能如輸入欠壓閉鎖保護、過壓/欠壓保護、逐週期電流限制保護、短路保護和過熱保護等。其出貨封裝形式為 WQFN-40L 5x5。

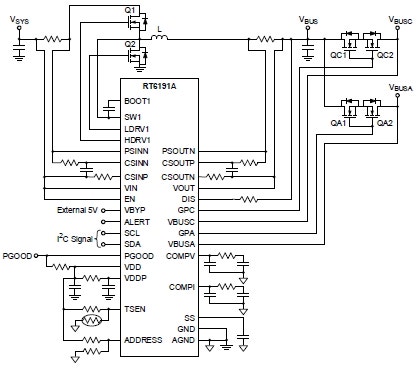

RT6191A 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>支援 USB PD3.0 SPR 模式和 28V USB PD3.1 EPR 模式 </li><li>Buck 控制器特性 <ul class="lv2"> <li></li><li>輸入電壓範圍：4.5V-36V </li><li>輸出電壓範圍：3V-36V </li><li>峰值電流模式控制架構 </li><li>工作頻率 250kHz-1MHz 可調 </li><li>節能模式使能輕載高效率 </li></ul> </li><li>AnyPower<sup>™</sup> 特性：輸出定電壓 12.5mV/級、輸出定電流 9 位解析度可調 </li><li>內建雙重過流保護功能 </li><li>支援旁通模式 </li><li>I<sup>2</sup>C 相容介面 </li><li>軟啟動時間可調 </li><li>纜線壓降補償可調 </li><li>內建 VBUS 快速放電電路 </li><li>Power Good 指示 </li><li>具備 UVLO、OVP、UVP、OCP、OTP 和逐週期電流限制保護功能 </li><li>WQFN-40L 5x5 封裝 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

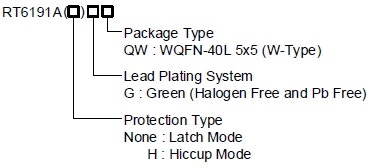

RT6191A 訂購資訊
