RT6206B是一款ACOT(Advanced Constant On-Time)操作模式的同步降壓型DC/DC轉換器，輸入電壓4.5V至18V範圍內，最大電流輸出為5.5A。系統操作於ACOT模式下可在廣負載變動範圍內提供良好的暫態回應，並於輸出電容的選擇上可選用具較小ESR的陶瓷電容，並確保整體系統表現的穩定性。此外，RT6206B在輸入與負載變動情形下仍能提供良好的固定操作頻率表現，內建的整流開關可允許在輸出在全負載變動範圍內提供良好的轉換效率。藉由偵測同步整流開關的端電壓可達到逐週期形式的限流機制，並可藉由外部的電容設計達到緩啟動效果，消除啟動時產生過大的輸入電湧。在保護機制方面，RT6206B具有過溫保護功能。RT6206B提供SOP-8(散熱焊盤)和WDFN-10L 3x3封裝。

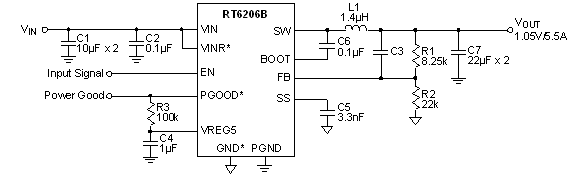

RT6206B 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>具ACOT™ 操作模式提供快速的暫態回應 </li><li>4.5V至18V 輸入電壓範圍 </li><li>5.5A 輸出電流 </li><li>35mΩ 內部低側N-MOSFET </li><li>進階的固定導通時間控制 </li><li>允許陶瓷電容作為輸出電容 </li><li>效率可達95% </li><li>輕載下操作於Discontinuous Operating Mode </li><li>可調輸出電壓範圍0.765V至8V </li><li>可調緩啟動 </li><li>逐週期電流限制 </li><li>輸入欠電壓鎖定 </li><li>過溫保護 </li><li>符合RoHS規範與無鹵特性 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

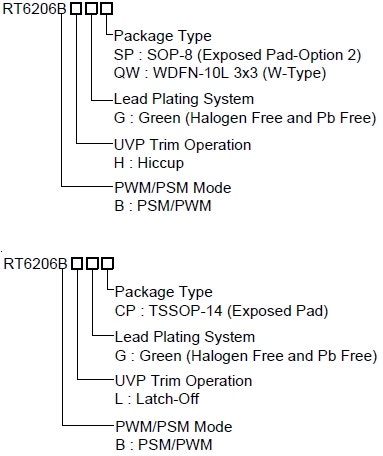

RT6206B 訂購資訊
