RT6214A/RT6214B 是一款簡單易用的 3A 同步降壓 DC-DC 轉換器，輸入電壓範圍為 4.5V 至 18V。產品內建低導通電阻（RDS(ON)）功率 MOSFET，可在小型 SOT-23 封裝中實現高轉換效率，並內建高精度參考電壓（依產品型號提供 0.765V 或 0.8V）。 RT6214A/RT6214B 採用先進固定導通時間控制（Advanced Constant On-Time，ACOT™）架構，僅需少量外部元件即可提供超快速暫態響應，並能在輸入電壓、負載及輸出電壓變化範圍內維持近乎固定的開關頻率。 RT6214A 採用自動省電模式（PSM），可在輕載運作時維持高效率；RT6214B 則採用強制 PWM 模式（Forced PWM），可滿足嚴格的輸出電壓穩定度要求。 RT6214A/RT6214B 可同時偵測高側與低側 MOSFET 電流，以提供可靠的過電流保護。產品具備逐週期限流保護（Cycle-by-Cycle Current Limit Protection），可防止輸出短路、過電流或電感飽和等異常情況對系統造成損害。 TSOT-23-6 系列內建軟啟動（Soft-Start）功能，可有效抑制啟動期間的湧入電流；TSOT-23-8 系列則提供可程式化軟啟動功能，只需於外部 SS 腳位連接電容即可設定啟動時間。 此外，產品亦整合輸入欠壓鎖定保護（UVLO）、輸出欠壓保護（UVP）及過溫保護（Thermal Shutdown），以確保各種工作條件下的安全與穩定運作。 RT6214A/RT6214B 提供 TSOT-23-6（FC）及 TSOT-23-8（FC）封裝。

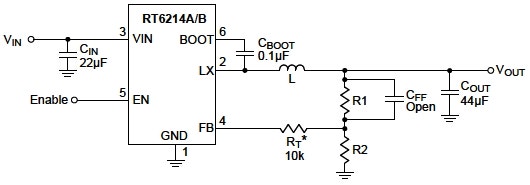

RT6214A/RT6214B 電路圖
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Input Supply Voltage Range : 4.5V to 18V </li><li>3A Converter With Built-in 100mΩ/50mΩ Low RDS(ON) Power FETs </li><li>Advanced Constant On-Time (ACOT<sup>TM</sup>) Control for Ultrafast Transient Response </li><li>Fixed Switching Frequency : 500kHz (SOT23-6) or 650kHz (SOT23-8) </li><li>Optional for Operation Modes : <ul class="lv2"> <li></li><li>Automatically Power Saving Mode (PSM) (RT6214A) </li><li>Forced PWM Mode (RT6214B) </li></ul> </li><li>Optimized for Low-ESR Ceramic Output Capacitors </li><li>±1.5% High-Accuracy Feedback Reference Voltage </li><li>Output Voltage Range : up to 6.5V </li><li>Internal fixed Soft-Start (typ. 1ms) for SOT-23-6 </li><li>Externally Adjustable Soft-Start for SOT-23-8 </li><li>Monotonic Start-Up for Pre-biased Outputs </li><li>Both HS/LS FETs Protection for Robust Over Current Protection </li><li>Input Under-Voltage Lockout (UVLO) </li><li>Output Under-Voltage Protection (UVP) with Hiccup Mode </li><li>Over-Temperature Protection (OTP) (Thermal Shutdown) </li><li>Enable Control </li><li>Power Good Indication for SOT-23-8 </li><li>RoHS Compliant and Halogen Free </li><li>Available in TSOT-23-6 or TSOT-23-8 Package </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

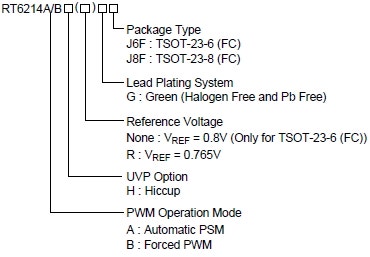

RT6214A/RT6214B 訂購資訊
