RT6215A/B是簡單易用的2A同步Buck轉換器，輸入電壓範圍為4.5V至24V，使用0.791V高精度參考電壓源，集成低導通電阻的MOSFET功率開關，使用TSOT-23-8 (FC) 封裝，具有極高的轉換效率。<BR>RT6215A/B使用ACOT™控制架構，具有超快速瞬態回應能力，週邊元件少，工作頻率幾乎恒定不變，不受輸入電壓、負載和輸出電壓等參數變化的影響。輕載條件下，RT6215A自動以PSM模式工作以維持高效率。RT6215B採用強制PWM方式工作，工作頻率不因負載變化而改變，可滿足高精度輸出應用的需求。<BR>RT6215A/B通過檢測上、下橋開關電流獲得強壯的過流保護特性，每個工作周的電流都受到限制，確保器件在輸出短路、過流和電感飽和等條件下都是安全的。它有外部可調的軟起動功能避免出現啟動期間的電流衝擊，具有輸入欠壓鎖定保護、輸出欠壓保護、過熱關機保護等功能確保任何條件下的安全和穩定運行。<BR>

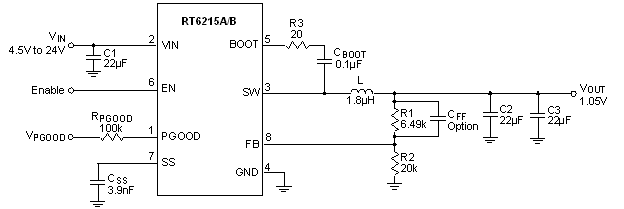

RT6215A/RT6215B 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>集成100mΩ/85mΩ功率開關的2A Buck轉換器 </li><li>輸入電壓範圍：4.5V至24V </li><li>輸出電壓範圍：0.791V至5V </li><li>ACOT™控制架構 </li><li>具有超快的瞬態回應速度 </li><li>無外部補償元件 </li><li>針對低ESR陶瓷輸出電容進行了優化 </li><li>0.791V±1.5%回饋參考電壓 </li><li>低靜態電流 (170μA) </li><li>上下橋均作過流保護之用 </li><li>工作模式可選 <ul class="lv2"> <li></li><li>RTT6215A支援輕載節能模式 </li><li>RT6215B支援強制PWM模式 </li></ul> </li><li>節能工作模式使用了輕載輸出紋波消減技術 </li><li>固定工作頻率：500kHz </li><li>軟起動外部可調 </li><li>輸出預偏置時啟動過程是單調的 </li><li>輸入欠壓鎖定保護 </li><li>輸出欠壓保護模式為打嗝模式 </li><li>有輸出正常指示 </li><li>含使能控制 </li><li>TSOT-23-8 (FC) 封裝 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

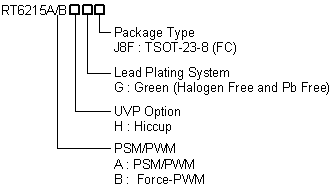

RT6215A/RT6215B 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT6215A/RT6215B
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT6215A/RT6215B
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>機上盒 </li><li>可擕式電視機 </li><li>無線路由器 </li><li>DSL數據機 </li><li>液晶電視 </li></ul></div>
