RT6266 為高效率，單片式的非同步整流DC/DC轉換器，輸入電壓範圍從7.5V至36V，輸出電流至2.4A。RT6266具有內部補償機制的電流模式架構，為車用5V充電應用中，大範圍負載變化以及輸出電容的最佳化解決方案。逐週期形式的限流機制可在輸出短路時提供電路保護作用，緩啟動機制則可消除啟動瞬間的輸入電流湧浪的問題。此外RT6266提供輸出過電壓保護，輸出低電壓保護與過熱關機保護功能，低電流(<3µA)的關機模式則可斷開與輸出的連接，實現簡易的電池供電系統中的電源管理。RT6266採用SOP-8(裸露焊盤)的封裝規格。

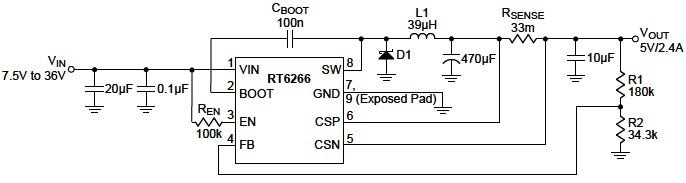

RT6266 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>±2% 高精確率回授電壓 </li><li>7.5V 至 36V 輸入電壓範圍 </li><li>2.4A 連續輸出電流(2.7A 峰值) </li><li>CC/CV 模式控制 </li><li>可調的負載/輸入電壓補償 </li><li>輸入電壓調節補償 </li><li>短路保護 </li><li>內部整合的 N-MOSFET 開關 </li><li>電流模式控制 </li><li>固定操作頻率: 100 kHz </li><li>可設計的輸出電流限制 </li><li>110mΩ 的內部整合功率級 MOSFET 開關元件 </li><li>低 EMI </li><li>效率高達 95% </li><li>逐周期的過電流限制保護 </li><li>輸入低電壓鎖定機制 </li><li>輸出低電依保護 </li><li>過熱關機保護 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

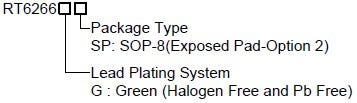

RT6266 訂購資訊
