RT6542A是高性能的同步Buck PWM控制器，可應用于筆記型電腦中將電池高電壓轉換為低電壓為CPU內核、I/O晶片組、記憶體等供電，具有效率高、瞬態回應特性好、輸出電壓精度高等特性。它採用固定導通時間控制架構的PWM控制架構，可在很寬的輸入/輸出電壓比範圍內工作，提供100ns量級的負載瞬變回應速度，同時保持基本恒定的工作頻率。它在應用中無需使用傳統電流模式控制架構使用的電流檢測電阻，降低了成本，提高了效率。它具備驅動大型同步整流MOSFET開關的能力，可在輕載時工作於二極體模擬模式以提高效率。它支援片上調節輸出電壓的功能，僅需輸入數位式控制信號即可在0.85V~1.05V間改變其輸出電壓，其最低輸出電壓為0.7V。其封裝形式為WDFN-14L 3x2。

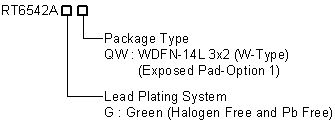

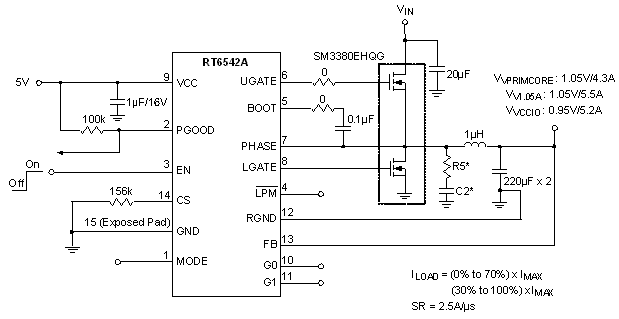

RT6542A 電路圖
