RT7100是針對PMSM/BLDC電機控制應用開發的專用電機控制器，集成了32位的ARM Cortex-M0處理器和實現FOC和無需感測器即可實現的電機控制電路如ADC、DAC、通訊介面、SVPWM信號發生器、看門狗計時器、電流檢測器、欠壓鎖定電路、過流保護電路和電機自鎖保護等電路，可縮減元件數量和板面空間，實現成本最優化。由於擁有眾多優勢，RT7100可以在電機驅動應用中獲得廣泛的應用機會。RT7100採用TSSOP-28封裝。

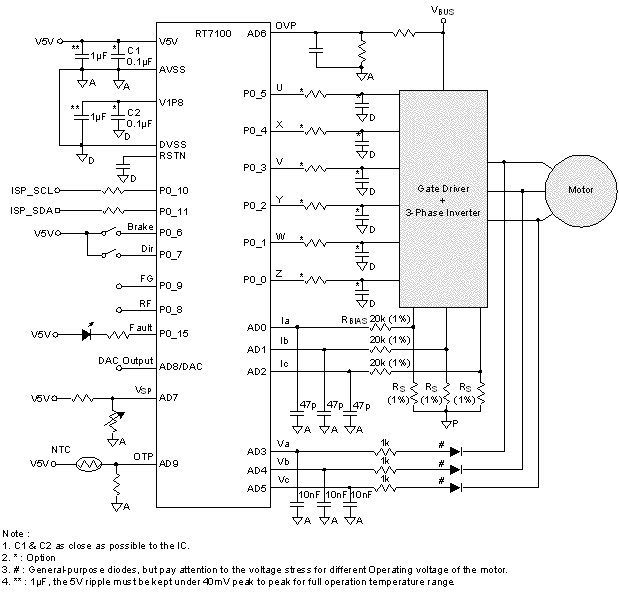

RT7100 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>無需感測器的正弦場導向控制 </li><li>集成32位元ARM Cortex-M0控制器，工作頻率高達60MHz </li><li>集成存儲空間：16KB可多次寫入程式存儲空間和4KB SRAM資料存儲空間 </li><li>工作電壓範圍：4.5V至5.5V </li><li>支持正常工作和深度睡眠的電源管理機制 </li><li>可程式控制軟起動機制 </li><li>通訊介面：I<sup>2</sup>C和UART </li><li>10路10位ADC </li><li>1路6位電流型DAC </li><li>1路一般用途8位元電壓型DAC </li><li>具備過流保護、欠壓鎖定和電機自鎖保護等機制 </li><li>固件編號為UXYYY的RT7100GC通過UL的IEC-60730-1 Class B認證，獲頒標誌 <img width="45" height="20" alt="" style="width: 45px; height: 20px;" src="/content/dam/richtek-eds/resources/images/icons/2017-08-24_170631.png"> </li><li>UL認證編號：E478780 (UL60730) </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

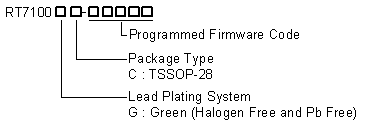

RT7100 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT7100
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT7100
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>PMSM/BLDC電機驅動 </li><li>台扇 </li><li>吊扇 </li><li>空氣淨化器室內外風扇 </li><li>泵類電機驅動 </li></ul></div>
