RT7202是具有纖薄的外形，用於高效率離線AC-DC轉換器的二次側USB電源 (USB PD) Type-C控制器。RT7202整合了一個MCU來處理USB PD協議，並且整合了一個用於USB PD或其他專有協議的內置雙相標記編碼 (BMC) 收發器。包括具有可編程參考電壓的運算放大器，用於電壓環路調節以達到高精準度的可編程恆定電壓 (CV) 調節。
RT7202 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>支援協議 <ul class="lv2"> <li></li><li>USB PD 2.0及3.0 </li><li>其他專有協議 </li></ul> </li><li>高度整合 <ul class="lv2"> <li></li><li>嵌入式MCU，具有16kB的Mask-ROM、8kB的OTP-ROM和1.5kB的SRAM </li><li>嵌入式BMC收發器 </li><li>寬VDD運作電壓範圍 : 3.6V至20V </li><li>用於恆定電壓控制的內置並聯穩壓器 </li><li>可編程電纜補償 </li><li>BLD引腳用於快速放電輸出電容 (RT7202E) </li><li>VDD引腳用於快速放電輸出電容 (RT7202A/D) </li><li>USBP引腳用於直接驅動外部阻斷P-MOSFET </li><li>待機模式下的省電模式 </li></ul> </li><li>保護功能 <ul class="lv2"> <li></li><li>適性的輸出過壓保護 </li><li>適性的欠壓保護 </li><li>可編程韌體的過流保護 </li></ul> </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

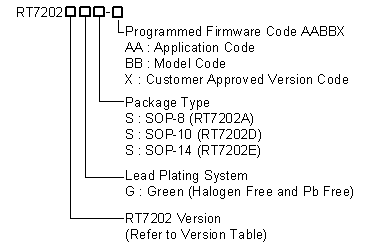

RT7202 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT7202
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT7202
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>USB PD Type-C 充電器/智慧型手機、NB、平板電腦及所有電子產品的轉接器 </li><li>USB PD擴展內核與離線AC-DC轉換器 </li></ul></div>
