RT7205A是高度集成的可程式設計開關電源二次側控制器，為高效率、高功率密度離線式AC-DC轉換器設計提供必要的功能和保護特性。它借助集成化的MCU、通過D+/D-介面完成對各種私有協定 (如FCP、SCP和AFC) 的支援，同時支援USB-C型介面的CC1/CC2的操作。它內部集成的同步整流控制器可以優化效率表現，即使在3V至12V輸出電壓範圍內也能以連續導通模式 (CCM) 和非連續導通模式 (DCM) 下安全運行。它含有兩個各以可程式設計參考電壓運作的運算放大器為電壓環路和電流環路提供調節信號，以高精度實現可程式設計的恒壓、恒流調節過程。

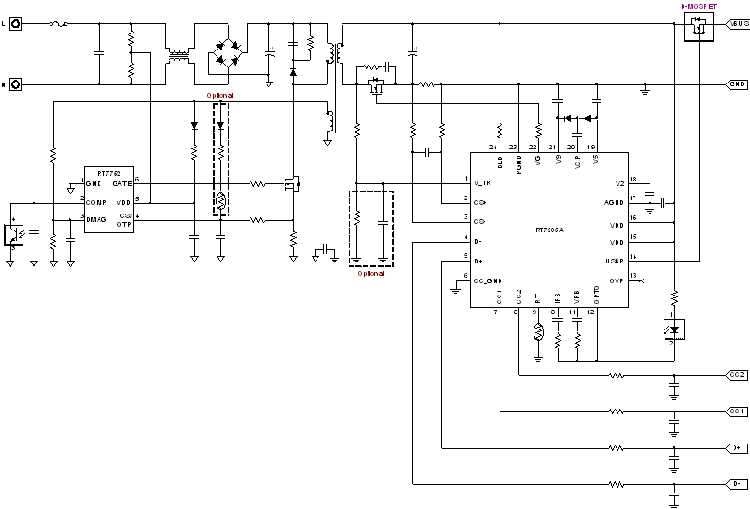

RT7205A 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>支援的協定 <ul class="lv2"> <li></li><li>SCP、FCP、AFC和其他私有協議 </li><li>USB-C型介面 </li></ul> </li><li>集成度高 <ul class="lv2"> <li></li><li>內嵌MCU，含16kB掩模ROM、8kB OTP-ROM和0.75kB SRAM </li><li>內建同步整流驅動器和控制器 </li><li>內建電荷泵，支持3V至12V寬VDD電壓範圍 </li><li>內建分流式調節器，供可程式設計恒壓、恒流控制使用 </li><li>可程式設計纜線補償 </li><li>BLD引腳可對輸出電容進行快速放電 </li><li>USBP引腳可直接驅動外部N-MOSFET阻斷開關 </li><li>待機模式下以節能模式運作 </li></ul> </li><li>保護特性 <ul class="lv2"> <li></li><li>自我調整式過壓保護 </li><li>自我調整式欠壓保護 </li><li>固件可程式設計過流保護 </li><li>固件可程式設計過熱保護 </li></ul> </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

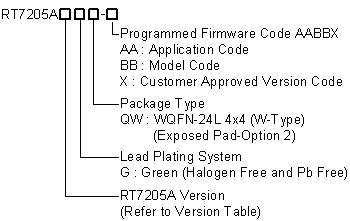

RT7205A 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT7205A
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT7205A
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>使用快充協定 (如FCP、SCP和AFC) 的旅行充電器 </li><li>具有USB-C型介面控制能力 (如5V/1.5A、5V/3A) 的旅行充電器 </li></ul></div>
