RT7249為一款高效率、單晶且具有功率開關的同步降壓型DC/DC轉換器，在4.5V至18V的輸入電源範圍可提供最高為3A的輸出電流。RT7249 採用電流模式架構和外部補償，可優化暫態回應的特性。逐週期的電流限制保護元件免受輸出短路影響；軟啟動功能可在啟動過程中防止了輸入電流過沖。故障保護提供了輸出欠壓保護和過溫保護。PWM頻率可由ROSC腳位調整，功率開關的電流限制可由RLIM腳位調整。低電流消耗(<3μA)之電源關機模式會將輸出關閉，有助於電池供電系統的電源管理。RT7249採用WQFN-16L 4x4封裝。

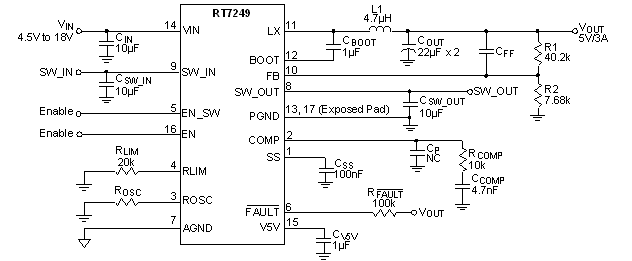

RT7249 電路圖
