RT7258為具有內部集成高端功率MOSFET與對低端外部功率MOSFET閘極驅動電路的同步驅動降壓型 DC/DC 轉換器，在4.5V至24V輸入範圍內輸出電流可高達8A。RT7258的電流模式架構允許操作在寬輸入電壓與負載範圍保有良好的暫態回應。逐週期形式的限流機制可在輸出短路時提供電路保護作用，緩啟動機制則可消除啟動瞬間的輸入電流湧浪的問題。RT7258可藉由外部的頻率訊號進行頻率範圍300Khz至1.5MHz的同步化操作。RT7258採用WDFN-14L 4x3 與 SOP-8 (裸露焊盤)的封裝規格。

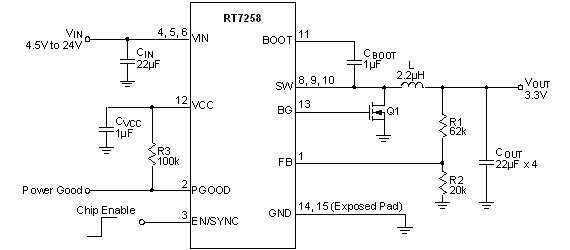

RT7258 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>4.5V 至 24V輸入電壓範圍 </li><li>8A輸出電流 </li><li>45mΩ內部整合的高端N-MOSFET開關 </li><li>電流模式控制 </li><li>600kHz 切換頻率 </li><li>0.808V 至 15V 可調輸出電壓範圍 </li><li>效率高達 95% </li><li>具內部的補償機制 </li><li>可採用陶瓷電容達到穩定 </li><li>外部頻率同步操作範圍：300kHz 至1.5MHz </li><li>逐週期的電流限制機制 </li><li>輸入低電壓鎖定機制 </li><li>輸出低電壓保護 </li><li>電源良好信號指示 </li><li>熱關斷保護 </li><li>符合RoHS規範與無鹵特性 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

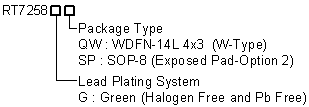

RT7258 訂購資訊
