RT7713是一款數位可控的PWM控制器，是具有數位控制器優勢的低成本模擬控制器，其創新的工藝流程容許系統設計者在關鍵參數、延遲時間和保護特性等方面進行選擇以優化自己的系統性能，可大幅縮減專案開發時間，增進元件選擇上的靈活性。<br>在可程式控制特性之外，RT7713還採用混合控制模式以提升效率，工作狀態可在連續導通模式、穀底切換模式和節能模式之間自動切換以使效率最佳化，與傳統的僅能工作於非連續導通模式的 PSR控制器有明顯區別。<br>RT7713的保護功能非常完備，含有精確的輸出電壓過壓保護、欠壓保護、CS引腳開路保護、DMAG引腳開路保護和短路保護、次級整流器短路保護和週邊元件過熱保護等功能。

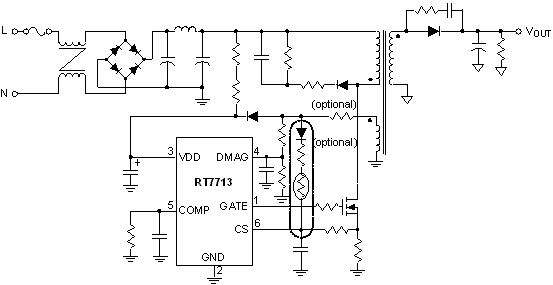

RT7713 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>可程式設計特性容許用戶對主要參數、延遲時間等進行選擇 </li><li>CCM/DCM模式下的CC/CV調節特性 <ul class="lv2"> <li></li><li>CCM/DCM模式下的初級恒壓調節 </li><li>CCM/DCM模式下的初級恒流調節 </li><li>整合纜線壓降補償功能 </li><li>整合線路補償功能 </li></ul> </li><li>多種支援高效率的措施 <ul class="lv2"> <li></li><li>CCM/VSM/GM混合控制模式 </li><li>超低啟動電流 ( < 3μA) </li><li>100mA/-200mA驅動能力 </li></ul> </li><li>採用專利SmartJitter<sup>TM</sup>技術 <ul class="lv2"> <li></li><li>降低了EMI輻射水準 </li><li>降低了頻率抖動導致的輸出紋波 </li></ul> </li><li>完備的保護功能 <ul class="lv2"> <li></li><li>可設定的輸入電容Brown-in/Brown-out保護 </li><li>可設定輸出過壓保護和欠壓保護 </li><li>可設定週邊過熱保護 </li><li>VDD過壓保護、次級整流器短路保護、DMAG引腳開路、短路保護和CS引腳開路保護 </li></ul> </li><li>符合RoHS規範，不含鹵素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

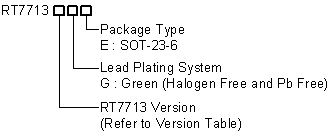

RT7713 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT7713
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT7713
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>行動電話、平板電腦和網絡通信設備的旅行用適配器 </li></ul></div>
