RT7739NC 是採用了立錡專有的 SmartJitter<SUP>™</SUP> 技術的反激式開關電源多模 PWM 控制器，它因採用該技術而降低了開關電源在節能模式下的 EMI 輻射，同時消除了抖頻帶來的輸出電壓紋波，而多模控制架構則使其無論工作在連續導通模式和穀底切換的非連續導通模式都可獲得高效率和優化的性能。<Br>RT7739NC 採用電流模式 PWM 控制架構，具有完備、可調的保護特性如延時補償、輸出過壓保護、週邊過熱保護、大電容 Brown-in/Brown-out 保護，用它設計的 AC/DC 轉換器具有成本合理、結構緊湊等特點。其封裝形式為 SOT-23-6。

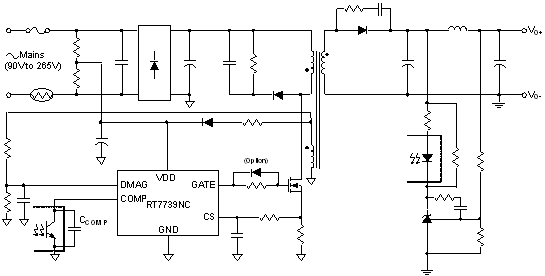

RT7739NC 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>SmartJitter<sup>™</sup> 專利技術 <ul class="lv2"> <li></li><li>降低開關電源 EMI 輻射 </li><li>消除頻率抖動造成的輸出紋波 </li></ul> </li><li>可工作於連續導通模式、非連續導通模式和穀底切換的非連續導通模式 </li><li>啟動電流 < 3μA </li><li>精確的過流保護 </li><li>可調線路補償 </li><li>可調輸出過壓保護 </li><li>可調週邊過熱保護 </li><li>可調大電容 Brown-in/Brown-out 保護 </li><li>驅動器能力：200mA/-300mA </li><li>高雜訊抑制能力 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher
RT7739NC 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT7739NC
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT7739NC
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>開關模式 AC/DC 適配器 </li><li>筆記型電腦電源適配器 </li><li>電視機、顯示器待機電源 </li><li>電腦週邊 </li></ul></div>
