RT7752GxQ系列產品是針對USB PD和可程式控制電源應用而開發的採用准諧振模式工作的PWM控制器，可與RT7202等配合構成完整的USB PD或其他可程式控制電源系統，具有轉換效率高、符合各種安全標準的特性，在5V輸出條件下的待機消耗低於50mW。</br>RT7752GxQ針對輸出電壓範圍很寬的應用加入了一些開創性的設計，其DMAG端可通過對輸出電壓的檢測進行環路增益調節以實現系統穩定，可對輸出過壓保護閾值進行調整以確保外部元件的安全，可調整電流限制閾值以符合受限電源 (Limited Power Source, LPS) 的安全需求。</br>RT7752GxQ也同時具有眾多的保護特性如大電容Brown-In/Brown-Out保護、VDD過壓保護、輸出過壓/欠壓保護、次級整流器短路保護、週邊過熱保護等。在恒定輸出功率的應用中，連接在CS端的電流檢測電阻可在全輸入電壓範圍內提供精確的線路補償。</br>當次級元件如RT7202或分流調節器出現故障時，RT7752GxQ也能提供保護作用。RT7752GxQ與RT7202的結合能帶來強壯、安全的設計，可防範電源系統在與各種已知或未知的設備、電纜、插頭座等連接時可能出現的各種錯誤所帶來的安全風險。

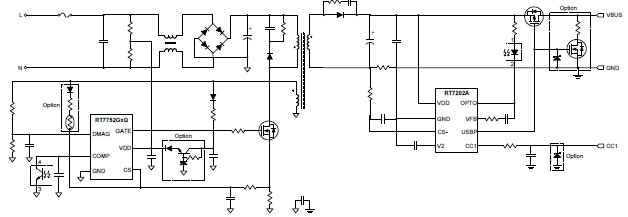

RT7752GxQ 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>針對輸出自我調整電源應用進行了優化 <ul class="lv2"> <li></li><li>VDD電壓範圍：10V~40V </li><li>自我調整過流保護 </li><li>自我調整環路增益控制實現環路穩定 </li></ul> </li><li>轉換效率高 <ul class="lv2"> <li></li><li>輕載、空載時自動工作於節能模式 </li></ul> </li><li>全面的保護 <ul class="lv2"> <li></li><li>輸入大電容Brown-In/Brown-Out保護 </li><li>VDD過壓保護 </li><li>輸出過壓/欠壓保護 </li><li>週邊過熱保護 </li><li>次級整流器短路保護 </li><li>可調線路補償 </li></ul> </li><li>其他特性 <ul class="lv2"> <li></li><li>5V輸出待機功耗小於50mW </li><li>驅動器能力：300mA/-300mA </li><li>使用SmartJitter™技術 </li></ul> </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

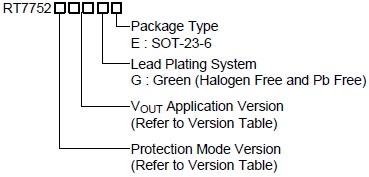

RT7752GxQ 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT7752GxQ
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT7752GxQ
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>USB PD和可程式控制電源適配器 </li></ul></div>
