RT7753GEN系列產品的設計目標是與類似RT7202的控制器配合以提供一個使用USB電源傳輸（USB PD）協議的或可程式控制的電源適配器，它具備高效電源的控制架構，待機功耗極低，5V輸出的待機功耗低於50mW。<Br>RT7753GEN使用諸多全新的技術來確保獲得寬範圍的輸出電壓，如（1）通過使用DMAG引腳對輸出電壓進行檢測並調節系統的環路增益，改變不同輸出電壓下的過壓保護閾值以實現對外部器件的保護，調節電流限制閾值以符合功率有限電源的安全需求；（2）具有完整的保護特性，其中包括大電容Brown-in/Brown-out保護、VDD過壓保護、輸出過壓/欠壓保護、次級整流器短路保護和外部溫度過高保護；（3）為實現恒定輸出功率調節，連接在CS引腳的一隻電阻可在全輸入電壓範圍內對輸入進行補償；（4）具備多種保護特性以應對次級側的元件如RT7202、分流式調節器等的失效可能帶來的風險。<Br>在實際的應用中，建議將RT7753GEN與二次側控制器RT7202共同使用以構成可靠、強壯又安全的設計，以便能面對諸如設備、電纜、插頭、插座等各種可能的錯誤連接狀況。

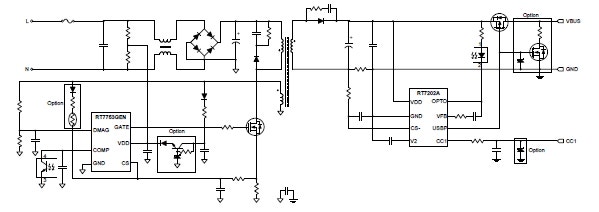

RT7753GEN 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>針對寬範圍的輸出功率進行了優化 <ul class="lv2"> <li></li><li>VDD電壓範圍：9V~42V </li><li>自我調整式輸出過壓保護 </li><li>自我調整式過流保護 </li><li>自我調整式回路增益調節以實現回路穩定 </li></ul> </li><li>高效率 <ul class="lv2"> <li></li><li>輕載和空載時工作於節能模式 </li></ul> </li><li>完備的保護特性 <ul class="lv2"> <li></li><li>大電容Brown-in/Brown-out保護 </li><li>VDD過壓保護 </li><li>輸出過壓/欠壓保護 </li><li>外部過熱保護 </li><li>次級整流器短路保護 </li><li>可調線路補償 </li></ul> </li><li>其他 <ul class="lv2"> <li></li><li>5V輸出待機節能模式功耗<50mW </li><li>驅動器驅動能力：300mA/-300mA </li><li>使用SmartJitter™技術 </li></ul> </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

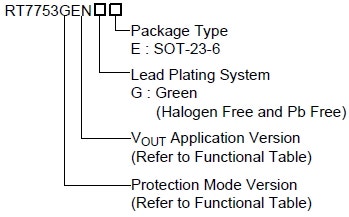

RT7753GEN 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT7753GEN
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT7753GEN
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>USB PD和可程式控制電源適配器 </li></ul></div>
