RT7755GES 系列專為搭配 RT7206 等控制器而設計，可提供完整的 USB PD（USB Power Delivery）或可程式化電源供應器（Programmable Power Adapter）解決方案。RT7755GES 不僅具備高效率的電源控制架構，同時在 5V 待機模式下可將待機功耗控制於 50mW，以符合低待機功耗設計需求。 RT7755GES 採用多項創新技術以支援寬範圍輸出電壓應用，包括： (1) 利用 DMAG 腳位感測輸出電壓，調整控制迴路增益以維持系統穩定性，同時調整輸出過壓保護（OVP）門檻值，以保護外部裝置，並調整電流限制以符合限制功率來源（LPS，Limited Power Source）安全規範要求。 (2) 內建完整保護功能，包括大電容輸入欠壓啟動/關機保護（Bulk-Capacitor Brown-In/Brown-Out Protection）、VDD 過壓保護（VDD OVP）、輸出過壓/欠壓保護（Output OVP/UVP）、同步整流器短路保護（SRSP，Secondary Rectifier Short-Circuit Protection）以及外部過溫保護（External OTP）。 (3) 在定功率輸出控制應用中，可透過於 CS 腳位外接電阻，實現全輸入電壓範圍內的精準線路補償（Line Compensation）。 (4) 提供多項保護機制，以防止次級側元件（例如 RT7206 或分流穩壓器）故障時對系統造成影響。 在實際應用中，建議 RT7755GES 搭配次級控制器 RT7206 使用，以實現穩健且安全的電源設計，有效避免因不同裝置、線材、插頭及插座錯誤連接所導致的各種潛在故障狀況。

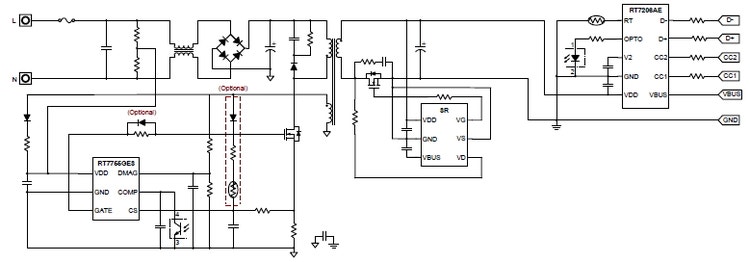

RT7755GES 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>Optimized for Adaptive Output Power <ul class="lv2"> <li></li><li>Wide VDD Range : 9V to 64V </li><li>Adaptive Output Over-Voltage Protection </li><li>Adaptive Over-Current Protection </li><li>Adaptive Loop Gain Control for Loop Stability </li></ul> </li><li>High Efficiency <ul class="lv2"> <li></li><li>Green Mode Operation at Light Load and No Load </li></ul> </li><li>Comprehensive Protection Features <ul class="lv2"> <li></li><li>Bulk-Capacitor Brown-In and Brown-Out Protection </li><li>VDD Over-Voltage Protection </li><li>Output Over-Voltage and Under-Voltage Protection </li><li>External Over-Temperature Protection </li><li>Secondary Rectifier Short-Circuit Protection </li><li>Programmable Line Compensation </li></ul> </li><li>Others <ul class="lv2"> <li></li><li>< 50mW in 5V Standby Mode for Power Saving </li><li>Driver Capability : 300mA/-300mA </li><li>SmartJitter<sup>TM</sup> Technology </li></ul> </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

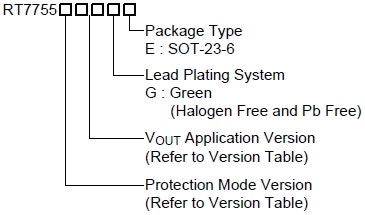

RT7755GES 訂購資訊
