RT7786 系列專為搭配 RT7207 等控制器而設計，以提供 USB PD 或可程式化電源轉接器的完整解決方案。RT7786 能夠實現高效率效能、符合安全標準，並具備低待機功耗，在 5V 待機條件下通常低於 30mW。RT7786 提供多項創新功能，以提供具備寬範圍輸出電壓的解決方案。透過使用 DMAG 腳位，RT7786 可感測輸出電壓，以調整迴路增益來維持系統穩定性、調整輸出過壓的臨界電壓以保護外部裝置，並調整電流限制以符合 Limited Power Source (LPS) 安全要求。RT7786 亦配備完整的保護功能，包括 brown-in/brown-out 保護、VDD 過壓保護 (VDD OVP)、輸出過壓 / 欠壓保護 (Output OVP/UVP)、二次側整流器短路保護 (SRSP)，以及外部過溫保護 (External OTP)。對於具備恆定輸出功率調節的應用，可使用連接至 CS 腳位的電阻，在通用輸入電壓範圍內實現精準的線路補償。RT7786 亦提供多種功能，以防止二次側元件（例如 RT7207 或分流穩壓器）發生故障。由於各種裝置、纜線、插頭與插座的連接方式多樣且未知，RT7786 與 RT7207 可搭配使用，以實現堅固且安全的設計，防止所有潛在故障情境。

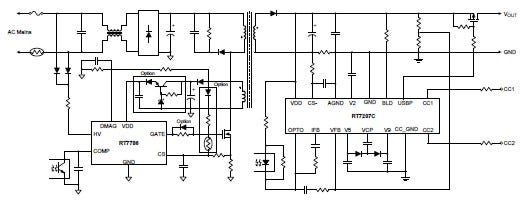

RT7786 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>Optimized for Adaptive Output Power <ul class="lv2"> <li></li><li>Wide VDD Range : 10V to 32V </li><li>Adaptive Output Over-Voltage Protection (Except RT7786xA and RT7786LCA) </li><li>Adaptive Over-Current Protection </li><li>Adaptive Loop Gain Control for Loop-Stability </li></ul> </li><li>High Efficiency <ul class="lv2"> <li></li><li>Green Mode Operation at Light Load or No Load </li></ul> </li><li>Comprehensive Protection Features <ul class="lv2"> <li></li><li>Brown-In and Brown-Out Protection </li><li>VDD Over-Voltage Protection </li><li>Output Over-Voltage and Under-Voltage Protection </li><li>External Over-Temperature Protection </li><li>Secondary Rectifier Short-Circuit Protection </li><li>Programmable Line Compensation </li></ul> </li><li>Others <ul class="lv2"> <li></li><li>< 30mW in 5V Standby Mode for Power Saving </li><li>Driver Capability : 300mA/-300mA </li><li>SmartJitter™ Technology </li></ul> </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

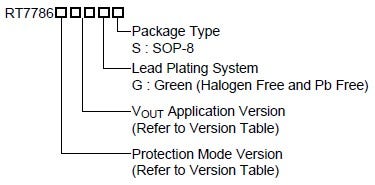

RT7786 訂購資訊
