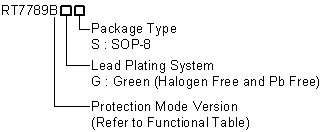

RT7789B 系列是一款增強型高效率多模式 PWM Flyback 控制器，採用立錡專有的 PowerZero<sup>TM</sup> 與 SmartJitter<sup>TM</sup> 技術。創新的 PowerZero<sup>TM</sup> 技術具備整合式 HV 元件，可提供優異的綠色電源解決方案，而 SmartJitter<sup>TM</sup> 技術可降低綠色模式下切換式電源供應器的 EMI 輻射，並消除因頻率抖動所造成的輸出漣波。此外，RT7789B 系列具備多模式控制機制，可從連續導通模式 (CCM) 運作至具谷底切換的不連續導通模式 (DCM)，以實現高效率與最佳效能。RT7789B 是一款用於 Flyback 轉換器的電流模式 PWM 控制器，整合完整且可程式化的保護功能，包括 brown-in/brown-out 保護、VDD 過壓保護 (VDD OVP)、輸出過壓與欠壓保護 (Output OVP and UVP)、二次側整流器短路保護 (SRSP)，以及外部過溫保護 (External OTP)。對於恆定輸出功率調節，可使用連接至 CS 腳位的電阻，在通用輸入電壓範圍內實現精準的線路補償。憑藉這些功能，RT7789B 可讓使用者針對各種 AC-DC 轉換應用實現具成本效益且精簡的設計。

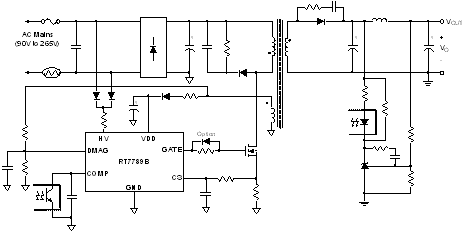

RT7789B 電路圖
