RT7790GBQ 專為搭配 RT7208E 等控制器而設計，可提供完整的 USB PD（Power Delivery）或可程式化電源供應器（Programmable Power Adapter）解決方案。 RT7790GBQ 整合雙向控制功能，可透過脈衝變壓器向 RT7208E 傳送零電壓切換（ZVS）脈衝訊號，並接收回授脈衝訊號以調節輸出電壓與輸出電流。因此，RT7790GBQ 可藉由一次側 MOSFET 的 ZVS 操作達成高轉換效率，並降低高輸入電壓條件下 MOSFET 的工作溫度。 RT7790GBQ 具備多項創新的系統控制功能，可支援寬範圍輸出電壓設計。其中一項創新功能為 DMAG 腳位，可感測輸出電壓並自動調整控制迴路增益以維持系統穩定性，同時調整電流限制以符合限制功率來源（LPS, Limited Power Source）安全規範要求。 RT7790GBQ 同時內建完整保護功能，包括大電容輸入欠壓啟動/關機保護（Bulk-Capacitor Brown-In/Brown-Out Protection）、VDD 過壓保護（VDD OVP）、輸出過壓/欠壓保護（Output OVP/UVP）、同步整流器短路保護（SRSP, Secondary Rectifier Short-Circuit Protection）以及外部過溫保護（External OTP）。 在定功率輸出應用中，可透過於電流感測電阻與 CS 腳位之間連接補償電阻，實現全輸入電壓範圍下的精準線路補償（Line Compensation）。此外，RT7790GBQ 還提供多種保護機制，以防止次級側元件故障所造成的系統異常。 實際應用中，RT7790GBQ 搭配次級控制器 RT7208E 使用，可實現穩健且安全的電源設計，有效避免因不同裝置、線材、插頭及插座錯誤連接而產生的各種潛在故障情況。

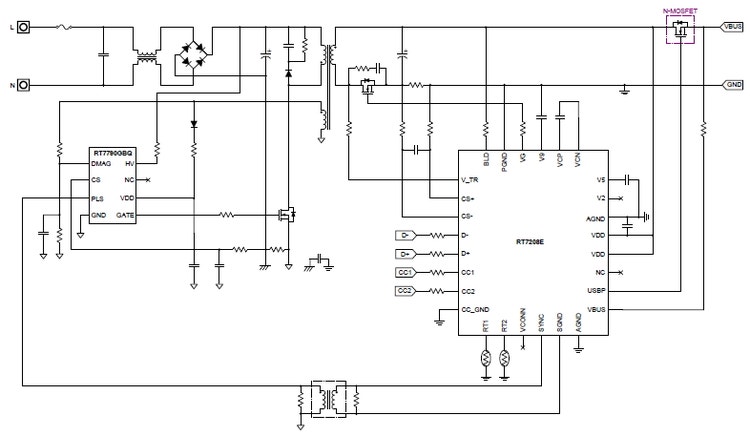

RT7790GBQ 電路圖
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Bi-Direction Control <ul class="lv2"> <li></li><li>Using a Pulse Transformer to Deliver ZVS Pulse Signal and Receive Feedback Pulse Signal </li></ul> </li><li>Optimized for Adaptive Output Power <ul class="lv2"> <li></li><li>Wide VDD Range : 8V to 37V </li><li>Adaptive Output Over-Voltage Protection </li><li>Adaptive Zero-Duty Mode Control </li><li>Adaptive Loop Gain Control for Loop Stability </li></ul> </li><li>High Efficiency <ul class="lv2"> <li></li><li>DCM ZVS Mode at High Line and Heavy Load </li><li>Green Mode and Zero-Duty Mode at Light Load or No Load </li></ul> </li><li>Comprehensive Protection Features <ul class="lv2"> <li></li><li>Bulk-Capacitor Brown-In and Brown-Out Protection </li><li>VDD Over-Voltage Protection </li><li>Output Over-Voltage and Under-Voltage Protection </li><li>External Over-Temperature Protection </li><li>Secondary Rectifier Short-Circuit Protection </li><li>Programmable Line Compensation </li></ul> </li><li>Others <ul class="lv2"> <li></li><li>Multi-Mode PWM Operation </li><li>Driver Capability : 200mA/-300mA </li><li>SmartJitter<sup>TM</sup> Technology </li></ul> </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

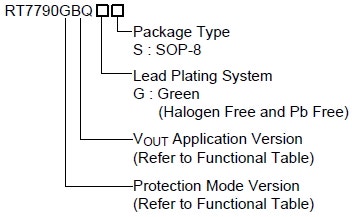

RT7790GBQ 訂購資訊
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RT7790GBQ
technicalDocumentMultipleTable
design-tools
RT7790GBQ
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>USB PD and Programmable Power Adapters </li></ul></div>
