RT7791系列產品是針對USB PD或可程式設計電源適配器設計的PWM控制器，可與RT7202等控制器一道形成完整的電源解決方案，使最終方案具有效率高、滿足安全標準、5V輸出的待機損耗低於50mW等特性。</br>RT7791在設計上包含許多創新的理念，為寬輸出電壓的應用提供了良好的解決方案。通過DMAG引腳的使用，RT7791可以測知輸出電壓並據此調節環路增益以實現系統穩定、調節過壓保護閾值以保護週邊元件、調節電流限制閾值以滿足受限電源的安全需求。</br>RT7791系列產品均具有完備的保護性功能設計，包括輸入電容Brown-In/Brown-Out保護、VDD過壓保護、輸出過壓/欠壓保護、次級整流器短路保護和週邊元件過熱保護。為了實現恒定輸出功率調節，連接在CS引腳的電阻可在全輸入電壓範圍內被用於獲得精確的線性補償。當變壓器次級側的元件如RT7202、分流式調節器等出現失效故障時，RT7791還具有多項保護特性予以應對。</br>RT7791和RT7202結合在一起所形成的系統是穩定而又安全的，可以防範各種危險情形可能帶來的傷害，其中就包括各種常用和未知的連接形式，如與設備的連接，與不同的電纜、插頭、插座等的連接。

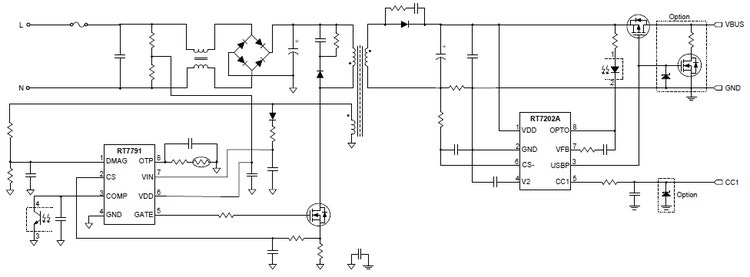

RT7791 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>針對輸出功率的自我調整所做的優化 <ul class="lv2"> <li></li><li>集成了低壓差穩壓器 </li><li>VDD電壓範圍：10V至40V </li><li>自我調整式輸出過壓保護 </li><li>自我調整式過流保護 </li><li>自我調整式環路增益控制，確保環路穩定 </li></ul> </li><li>高效率設計 <ul class="lv2"> <li></li><li>輕載或空載時進入節能操作模式 </li></ul> </li><li>完備的保護特性 <ul class="lv2"> <li></li><li>輸入電容Brown-In/Brown-Out保護 </li><li>含OTP引腳用於週邊過熱保護 </li><li>VDD過壓保護 </li><li>輸出過壓、欠壓保護 </li><li>次級整流器短路保護 </li><li>可調線路補償 </li></ul> </li><li>其他 <ul class="lv2"> <li></li><li>5V輸出待機模式功耗小於50mW </li><li>驅動器驅動能力：300mA/-300mA </li><li>採用SmartJitter<sup>TM</sup>技術 </li></ul> </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

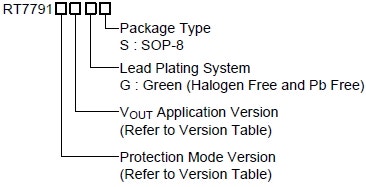

RT7791 訂購資訊
