RT8004 是一款高效率同步降壓 DC/DC 轉換器。其輸入電壓範圍為 2.65V 至 5.5V，輸出電壓可於 0.8V 至 5V 範圍內調整，並可提供最高 3A 的輸出電流。 內建導通電阻僅 75mΩ 的功率開關，可有效提高轉換效率，並省去外部蕭特基二極體（Schottky Diode）的需求。開關頻率可透過外接電阻設定，或與外部時脈訊號同步。100% 占空比設計可實現低壓差（Low Dropout）運作模式，有助於延長可攜式設備的電池使用時間。外部補償設計則可讓系統在不同負載條件及輸出電容配置下，獲得最佳化的暫態響應性能。 RT8004 採用強制連續導通模式（Forced Continuous Mode）運作，可有效降低雜訊與射頻干擾（RF Interference）。此外，在低壓差運作模式下支援 100% 占空比，更進一步提升電池使用效率與續航時間。

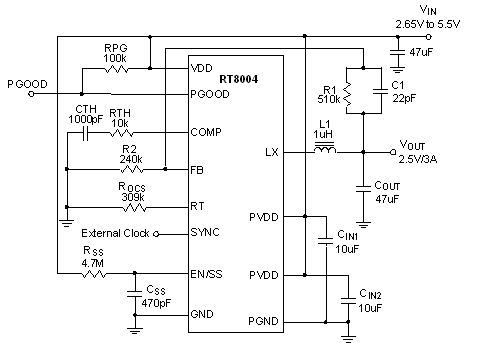

RT8004 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>High Efficiency : Up to 95% </li><li>Low Quiescent Current : 100μA </li><li>Low R<sub>DS(ON)</sub> Internal Switches : 75mΩ </li><li>Programmable Frequency : 300kHz to 4MHz </li><li>No Schottky Diode Required </li><li>0.8V Reference Allows Low Output Voltage </li><li>Low Dropout Operation : 100% Duty Cycle </li><li>Synchronizable Switching Frequency </li><li>Power Good Output Voltage Monitor </li><li>Over Temperature Protection </li><li>Thermally Enhanced TSSOP-16 (Exposed Pad) and 16-Lead VQFN 4x4 Packages </li><li>RoHS Compliant and 100% Lead (Pb)-Free </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

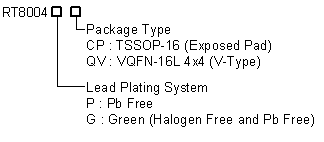

RT8004 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT8004
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT8004
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>Portable Instruments </li><li>Battery-Powered Equipment </li><li>Notebook Computers </li><li>Distributed Power Systems </li><li>IP Phones </li><li>Digital Cameras </li></ul></div>
