RT8005為內建P-通道 與 N-通道 功率級MOSFET 開關元件的PWM同步降壓型DC/DC轉換器，輸入範圍2.4V至5.5V，可輸出電流達1A，可調輸出電壓最低可至0.5V。RT8005適用于由單一鋰電池或鎳氫/鎳鎘電池供電的可攜式電子裝置。RT8005由於操作在PWM固定2MHz的切換頻率，可適用較小的 C<sub>IN</sub>, C<sub>OUT</sub> 電容與電感元件的設計，並內建兩組低R<sub>DS(ON)</sub> 分別為高端230mΩ 與低端180mΩ 的MOSFET開關元件，減少電路板中所需的設計面積，只需加入電阻、電容與一個電感元件即可完成設計，另包含內建的緩啟動機制、電路致能控制、過熱與過電流保護等功能。RT8005採用小型可節省電路設計面積的VDFN-10L 3x3的封裝。

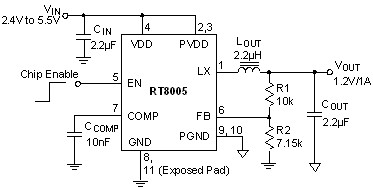

RT8005 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>2.4V 至 5.5V輸入電壓範圍 </li><li>0.5V 至V<sub>IN</sub>可調輸出電壓範圍 </li><li>1A輸出電流 </li><li>高精確度的參考電壓: 0.5V (± 1.5%) </li><li>轉換效率高達90% </li><li>靜態電流: 200μA </li><li>內建兩組低R<sub>DS(ON)</sub>的MOSFET開關元件:高端230mΩ 與低端180mΩ </li><li>PWM電流模式操作 </li><li>固定操作頻率: 2MHz </li><li>近100%的責任週期操作允許輸出低壓降轉換 </li><li>內建的緩啟動機制 </li><li>不需外接蕭特基二極體 </li><li>具過熱與過電流保護機制 </li><li>採用小型的VDFN-10L 3x3的封裝 </li><li>符合RoHS規範與100%的引腳無鉛特性 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

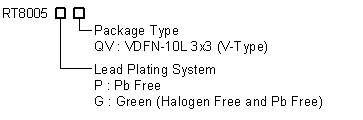

RT8005 訂購資訊
