RT8020 為雙通道高效率脈波寬度調變(PWM)降壓型DC/DC 轉換器。可在寬輸入範圍2.5V 至 5.5V輸出1A電流。RT8020適用于由單一鋰電池供電的可攜式電子裝置，例如行動電話、PDA與掌上型裝置。</br>RT8020 具備兩種操作模式:PWM/低壓降 自動切換模式以及關機模式。操作于PWM模式時可藉由內部具備低R<sub>DS(ON)</sub>的同步整流元件大幅的降低導通損耗。並不需外加蕭特基二極體於實際應用中。</br>RT8020當PWM操作時無法連續導通上端PMOS時，進入低壓降模式。當EN腳位為低電位時，進入關機模式，消耗電流小於0.1μA。</br>由於操作在固定頻率1.5MHz，可由較小封裝的元件進行濾波設計得到較平滑的切換漣波，可藉由WDFN-12L 3x3的封裝提供小面積PCB的設計應用。其他特色包括緩啟動、具2%精準度的低內部參考電壓、過溫保護與過電流保護等。

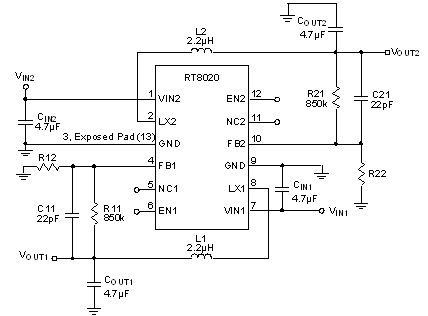

RT8020 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>2.5V 至5.5V 輸入範圍 </li><li>可調輸出範圍0.6V 至V<sub>IN</sub> </li><li>1.2V、1.3V、 1.8V、 2.5V 與 3.3V 的固定/可調 輸出電壓 </li><li>1A 輸出電流 </li><li>效率達95% </li><li>不需外加蕭特基二極體 </li><li>每通道50μA 的靜態電流 </li><li>1.5MHz 固定頻率的PWM操作 </li><li>小型的 12-引腳 WDFN 封裝 </li><li>符合RoHS規範與100%的引腳無鉛特性 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

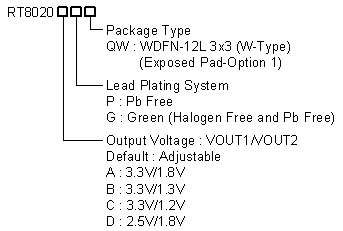

RT8020 訂購資訊
