RT8115A為一款輸入電壓5V/12V的高效率單相同步降壓型DC/DC控制器，採用Green Voltage Mode (GVM<sup>TM</sup>)控制，可以提高輕負載條件下轉換器的效率。在輕載條件下，IC自動操作在diode emulation mode，該模式以恆定導通時間PFM操作以降低開關頻率，進而提高轉換效率。隨著負載電流的增大，RT8115A會工作在 continuous conduction mode ，以固定頻率PWM操作。由於RT8115A嵌入了MOSFET柵極驅動器，因此具有較高的驅動能力，可支持的驅動電壓高達12V的高輸出電流的應用。RT8115A採用無損低側MOSFET R<sub>DS(ON)</sub>電流檢測技術的過電流保護，閾值可由LGATE引腳(LGOCS)設定。其它特點包括電源良好指示、始能/停止控制和內部軟啟動。RT8115A還提供了故障保護功能，以保護功率級的輸出。上述功能為客戶提供高效率且具有成本效益的電源轉換解決方案。RT8115A提供WDFN-10L 3x3封裝。

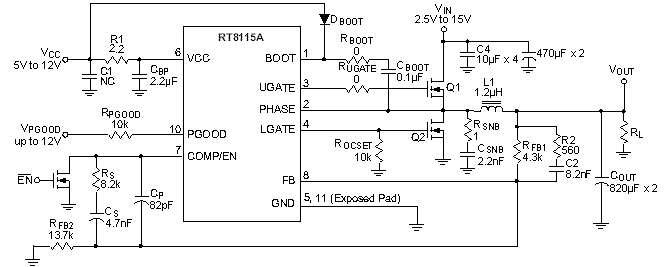

RT8115A 電路圖
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>節能控制模式 Green Voltage Mode (GVM<sup>TM</sup>) </li><li>輕載效率高 </li><li>5V至12V驅動器電壓 </li><li>內鉛高驅動能力N-MOSFET柵極驅動器 </li><li>內部300kHz固定頻率震盪器 </li><li>85%最大PWM工作週期 </li><li>電源良好指示 </li><li>始能/停止控制 </li><li>自適零電流檢測 </li><li>内置軟啟動 </li><li>無損低側MOSFET R<sub>DS(ON)</sub>電流檢測技術的過電流保護 </li><li>LGATE過電流設定(LGOCS) </li><li>輸出電壓監測 </li><li>OCP, UVP, OVP, OTP, UVLO </li><li>符合 RoHS 規範且不含鹵素 </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

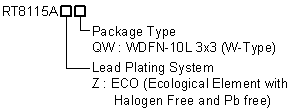

RT8115A 訂購資訊
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RT8115A
technicalDocumentMultipleTable
design-tools
RT8115A
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>主機板、記憶體、晶片電源 </li><li>顯示卡,GPU/記憶體核心電源 </li><li>低壓大電流DC/DC調節器 </li></ul></div>
