RT8120J/K 是通過驅動兩隻 N-MOSFET 實現的單相同步 Buck 控制器，可藉其自身具有的 0.8V±1% 或 0.6V±1.5% 參考電壓提供可調節的高精度低壓輸出。它使用單反饋回路的電壓模式控制架構實現快速的瞬態回應，使用 300kHz 的固定工作頻率，外部電感和電容尺寸較小，可減少 PCB 佔用面積。它在大電流應用中具有快速瞬態回應能力，同時具有外部元件少的優勢，適用於高性能影像處理器、DDR 記憶體 VTT 電源等應用。其誤差放大器使用外接補償電路，內置軟啟動和輸出使能功能，以 SOP-8 和含有散熱焊盤的 SOP-8 封裝供貨。

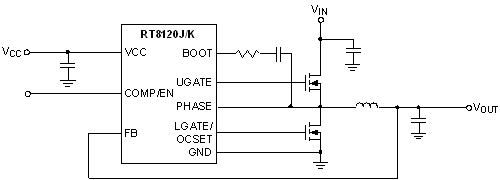

RT8120J/RT8120K 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>輸入電壓範圍：3V~13.2V </li><li>內建自舉二極體 </li><li>內建 0.8V±1% 或 0.6V± 參考電壓源 </li><li>柵極驅動器具有直通保護和短脈衝消除功能 </li><li>300kHz 固定工作頻率 </li><li>內置軟啟動 </li><li>利用 MOSFET R<sub>DS(ON)</sub> 進行過流保護 </li><li>使能/關機控制 </li><li>驅動兩隻 N-MOSFET </li><li>占空比範圍：0%~85% </li><li>快速瞬態回應 </li><li>使用外加回饋補償的電壓模式控制架構 </li><li>共用 LGATE 實現過流閾值設定 </li><li>欠壓保護 </li><li>SOP-8 和 PSOP-8 封裝 </li><li>符合 RoHS 規範，不含鹵素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

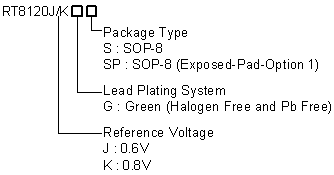

RT8120J/RT8120K 訂購資訊
