RT8122為內建MOSFET驅動以及兩組LDO的雙通道輸出同步降壓型PWM控制器，具有綠能電壓模式(GVM™)的特點，可以在輕載狀態時達到高效率的表現。RT8122當在輕載狀態時，可藉由腳位設置自動操作在二級管仿效模式的固定導通時間PFM以降低切換頻率並改善電能轉換效率。當負載電流增加，RT8127脫離二級管仿效模式並操作在固定頻率的連續導通模式(CCM)。180°的錯相PWM控制可減少所需的輸入電容大小。RT8122支援4.5V至26V的輸入電壓範圍，並整合5V的LDO可供應給內部閘極驅動及控制器的電源需求。當通道1的降壓轉換器輸出電壓高於5V，供應電源會自動切換為內建的LDO供應5V的輸出。RT8122提供每個通道的 致能/關閉 功能、外部緩開機設計以及可調的切換頻率與電源良好指示功能，並採用無損耗的電感DCR電流感測技術的過電流保護功能。其它的保護功能包括過電壓、低電壓、過熱關機與過低電壓閂鎖功能。RT8122並支持 WQFN-28L 4x4 的小型封裝。

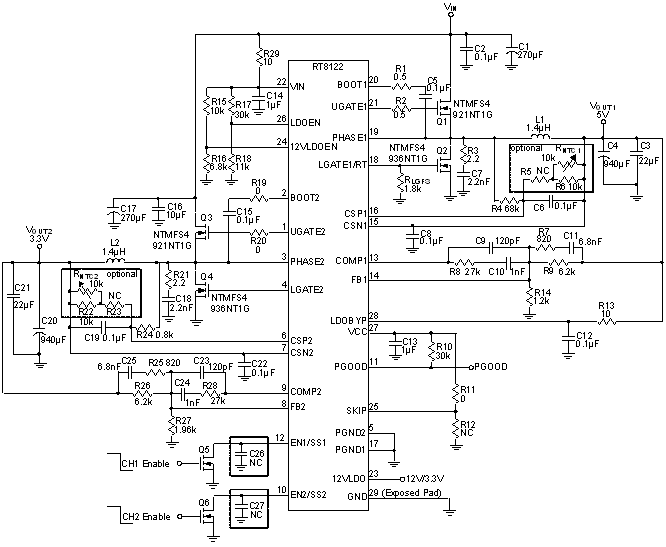

RT8122 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>綠能電壓模式(GVM™)控制 </li><li>輕載高效率 </li><li>在輕載輸出時自動切換為省略模式(ASM) </li><li>可由腳位控制切換CCM/DEM 操作 </li><li>在CCM操作時180&deg的錯相PWM控制 </li><li>支援4.5V 至26V輸入電壓範圍 </li><li>整合5V MOSFET 驅動器以及靴帶式電路 </li><li>整合5V與12V的 LDO </li><li>提供各通道的 致能/關閉 功能 </li><li>外部/內設 的緩啟動控制 </li><li>可調的LGATE PWM 頻率設定(LGFS) </li><li>可自動切換的5V 調節器 </li><li>電源良好信號指示 </li><li>VIN 前向回饋的控制回路 </li><li>無損耗的電感DCR電流感測 </li><li>支援過電壓、低電壓、過電流保護、過熱關機與過低電壓閂鎖功能 </li><li>小型的28-腳位 WQFN 封裝 </li><li>過電壓、低電壓、過熱關機與過低電壓閂鎖功能 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

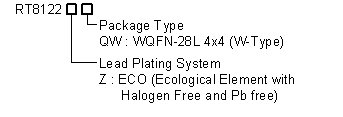

RT8122 訂購資訊
