RT8152A/RT8152B 是一款單相 PWM 控制器，內建 MOSFET 驅動器，並符合 Intel IMVP6.5 電壓調節器規範，可滿足行動平台 CPU 核心與繪圖核心的供電需求。 RT8152A/RT8152B 採用立錡專有的 G-NAVP 架構，此架構源自有限直流增益補償器的固定導通時間控制技術，可輕鬆滿足 Intel 主動電壓定位需求，簡化系統設計與調校流程。輸出電壓透過 7 位元 VID 碼進行設定，內建高精度數位類比轉換器可將 VID 設定值轉換為 0V 至 1.5V 的輸出電壓範圍，每級調整解析度為 12.5mV，系統電壓精度最高可達 ±1.5%。 本產品支援即時 VID 切換與即時工作模式切換功能，完全符合 Intel IMVP6.5 規範要求。RT8152A/RT8152B 可於單相模式與二極體模擬模式下運作，並可依據負載條件自動提高轉換效率，在不同工作模式下效率最高可達 90%。 輸出負載線可透過調整誤差放大器的直流增益進行設定，配合適當補償設計，可獲得最佳化的負載暫態響應效能。晶片也可透過外接電容控制軟啟動時間及輸出電壓轉換斜率，並支援電感直流電阻與分流電阻兩種電流感測方式。 RT8152A/RT8152B 提供電源良好指示訊號與溫度降頻控制訊號，以符合 Intel IMVP6.5 繪圖核心規範需求，同時提供額外的時脈啟用功能以支援 CPU 核心應用。 此外，產品內建完整保護功能，包括過壓保護、欠壓保護、負電壓保護、過電流保護以及過溫保護，可有效提升系統可靠性與安全性。 RT8152A/RT8152B 採用小尺寸 WQFN-32L 5mm × 5mm 封裝。

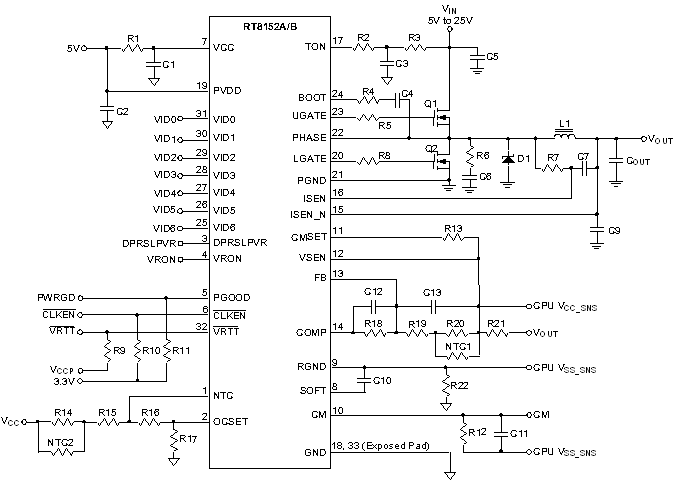

RT8152A/RT8152B 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>Single Phase PWM Controller with Integrated MOS Driver. </li><li>Low-Gain Compensator with CCRCOT Topology (Constant Current Ripple Constant On Time) </li><li>7-bit DAC </li><li>0.8% DAC Accuracy </li><li>1.5% or 11.5mV System Accuracy </li><li>Fixed V<sub>BOOT</sub> (For CPU Core Only) </li><li>Differential Remote Voltage Sensing </li><li>G-NAVP Topology (Green-Native AVP) </li><li>Programmable Output Transition Slew Rate Control </li><li>System Thermal Compensated AVP </li><li>Ringing Free Mode at Light Load Condition </li><li>Fast Transient Response </li><li>IMVP6.5 Compatible Power Management States </li><li>Power Good </li><li>Clock Enable Output (For CPU Core Only) </li><li>Thermal Throttling </li><li>Current Monitor Output </li><li>Switching Frequency Up to 1MHz </li><li>OVP, UVP, OCP, OTP, UVLO, NVP </li><li>32-Lead WQFN Package </li><li>RoHS Compliant and Halogen Free </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

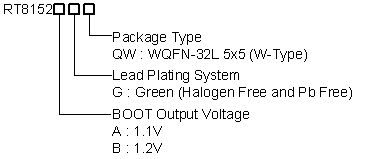

RT8152A/RT8152B 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT8152A/RT8152B
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT8152A/RT8152B
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>IMVP6.5 CPU / Render Core Voltage Regulator </li><li>AVP Step-Down Converter </li><li>Notebook / Desktop Computer / Servers </li></ul></div>
