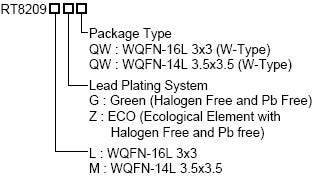

RT8209L/M PWM 控制器具有轉換效率高、卓越的瞬態回應特性和高精度的電壓輸出，可將筆記型電腦的電池高電壓轉換為 CPU 內核、圖形處理器、I/O 和晶片組需要的低壓電源。由於採用固定導通時間控制技術，它可很容易地面對輸入/輸出比很寬的環境，對負載瞬變提供 100ns 的“即時”回應速度，同時維持基本固定的工作頻率。RT8209L/M 不使用傳統的電流模式 PWM 控制架構中的電流檢測電阻，降低了成本，提高了效率。其效率的進一步提升還來自於其具有的驅動大型同步整流 MOSFET 的能力，使其可將電池高電壓直接轉換為系統需要的電壓，這也使得效率實現了最大化，可為 CPU 內核、晶片組、DRAM 或其它低壓系統提供低達 0.75V 的電源供應。RT8209L 的封裝為 WQFN-16L 3x3，RT8209M 的封裝為 WDFN-14L 3.5x3.5。

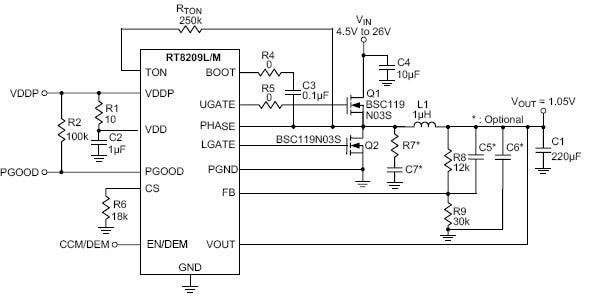

RT8209L/RT8209M 電路圖
