RT8230A/B/C/D/E 是雙通道 Buck 控制器，用於為電池供電的系統生成穩定的電壓。其中包含兩組輸出電壓 2V~5.5V 可調的 PWM 控制器和兩組固定 5V/3.3V 輸出的線性穩壓器，每組線性穩壓器可輸出最大 100mA 的電流，5V 線性穩壓器為 PWM 驅動器提供電源。RT8230A/B/C/D/E 具有片內上電時序管理功能、Power Good 輸出、內部軟啟動功能，還有輸出端關機軟放電功能避免負電壓的出現。</br>它採用固定導通時間控制技術，沒有電流檢測電阻，對負載瞬變具有 100ns 快速回應能力。為了消除音訊應用雜訊，還具有超聲工作模式，可將工作頻率維持在 25kHz 以上。為了獲得最高的轉換效率，它在輕載條件下會自動進入二極體模擬模式工作。其封裝為 WQFN-20L 3x3。

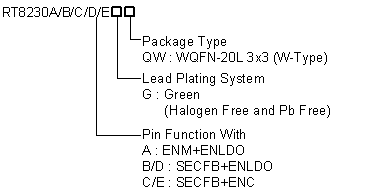

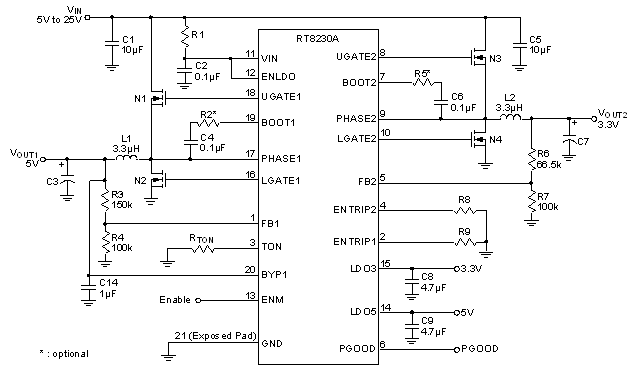

RT8230A/RT8230B/RT8230C/RT8230D/RT8230E 電路圖
