RT8237F為提供高效率、優越的暫態回應與高直流輸出穩定度的降壓型PWM 控制器，適用於電池降壓供電予筆記型電腦內部具有低壓電源需求的CPU核心、I/O與RAM晶片等應用。PWM的固定導通時間架構可允許較廣的輸入/輸出電壓比，並可在固定的切換頻率下提供100ns "instant-on" 的負載回應特性。RT8237F 具備高效率並可不必裝設以往傳統PWM電流模式所必要的電流感測電阻以達到低電路設計成本的優勢，並可藉由驅動同步整流MOSFET並進入二極體仿效模式以達到輕載狀態的高效率表現。其降壓轉換特性允許裝置電池達到最高效率的條件下進行高低壓轉換。可預設的頻率選擇功能可降低應用新設計時所需要額外耗費的設計資源。RT8237F 為專用於CPU核心、DRAM或其他需要低於0.7V的應用設計。RT8237F支持WDFN-10L 3x3 封裝。

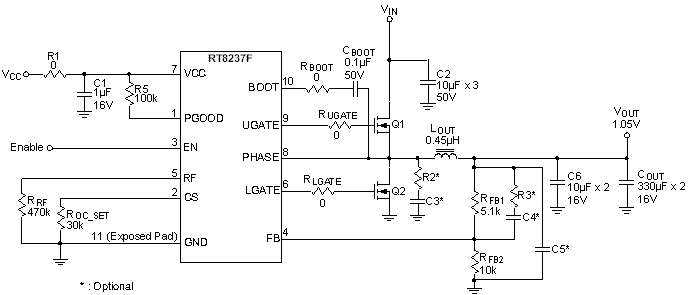

RT8237F 電路圖
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>寬輸入電壓範圍：4.5V至26V </li><li>輸出電壓範圍：0.7V至3.3V </li><li>內建0.5% 0.7V參考電壓 </li><li>100ns以內的快速負載步階回應 </li><li>可藉由低端R<sub>DS(ON)</sub>感測程式設計的4700ppm/°C電流限制設計 </li><li>四組可選的頻率設定 </li><li>緩啟動控制 </li><li>可驅動大型同步整流FET </li><li>整合的自舉開關 </li><li>內建過電壓/過電流/低電壓保護 </li><li>過熱關機 </li><li>電源良好信號指示 </li><li>符合RoHS規範與無鹵特性 </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

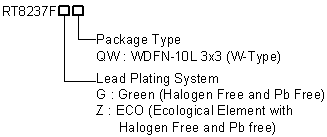

RT8237F 訂購資訊
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RT8237F
technicalDocumentMultipleTable
design-tools
RT8237F
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>Notebook Computers </li><li>CPU Core Supply </li><li>Chipset/RAM Supply as Low as 0.7V </li><li>Generic DC/DC Power Regulator </li></ul></div>
