RT8306 是一款 48 通道高精度定電流 LED 驅動器，具備 12-bit PWM 控制，適用於 LED 背光的時序掃描應用。RT8306 具有 48 通道彈性 PWM 產生器，以及獨立 12-bit PWM 亮度控制，可控制每個通道的 LED 電流。此外，它具備一個全域高精度 8-bit IDAC，可設定 LED 峰值電流。另有 48 個獨立 8-bit DAC，可用於提升或降低 LED 電流，以支援高動態範圍應用。<br /><br />LED 驅動器上的定電流汲入通道可汲入 60mA 電流，其電流水準可透過暫存器位址 0561 [7:0] 設定，範圍為 5mA 至 60mA。RT8306 為每個通道提供 ±2% 的高精度電流。它亦支援透過獨立 PWM 產生器進行區域調光與全域調光，並具備可程式化 PWM 占空比、週期與延遲。此外，RT8306 提供動態餘裕控制 (DHC) 功能，可產生回授訊號至 DC-DC 控制迴路並調節輸出電壓。<br /><br />RT8306 亦提供 LED 開路 / 短路保護。若任何通道發生開路或短路，FLT 腳位將被拉低，且輸出通道將個別關閉。RT8306 採用 WQFN-72L 8x8 封裝，可實現針對 PCB 空間最佳化的解決方案。

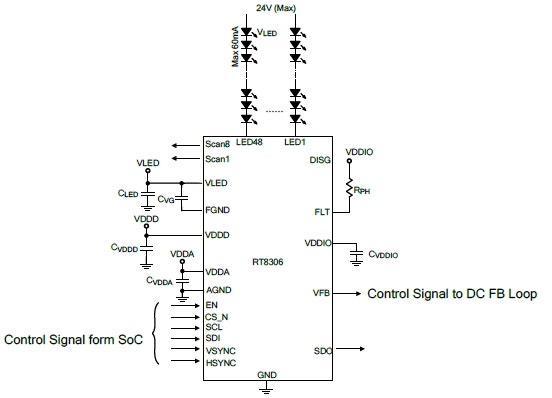

RT8306 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>Wide Current Range : 5mA to 60mA </li><li>Programmable Channel Current (8-bit Resolutions) </li><li>Low Dropout Voltage : 400mV at 60mA </li><li>Support Dot Correlation Function </li><li>Support HDR Mode </li><li>Dimming Mode : <ul class="lv2"> <li></li><li>PWM Mode for Scan and Non-Scan Type </li><li>Direct PWM Mode </li><li>DC Mode </li></ul> </li><li>±2% Accuracy Current for Wide Current Range </li><li>LED Current Rising and Falling Slop Control </li><li>Fault Detection for LED Open/Short </li><li>Under-Voltage Lockout and Thermal Shutdown </li><li>Integrated Dynamic Headroom Control (DHC) </li><li>Support 1D/2D/3D Dimming (Programmable Channel Delay, Individual PWM Duty Control, Automatic VSYNC Synchronization) </li><li>25MHz Max SPI Interface with Daisy chain </li><li>Flexible Daisy-Chained SPI Interface </li><li>RoHS Compliant and Halogen Free </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

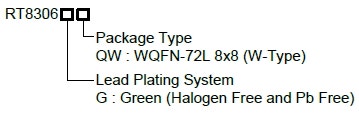

RT8306 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT8306
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT8306
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>LCD TV, MNT Display Backlight </li><li>General Purpose Constant Current Source </li><li>Architectural and Decorative LED Lighting </li></ul></div>
